19inch rack mount 2U chassis with HDD trays short depth network server case 2U

Module

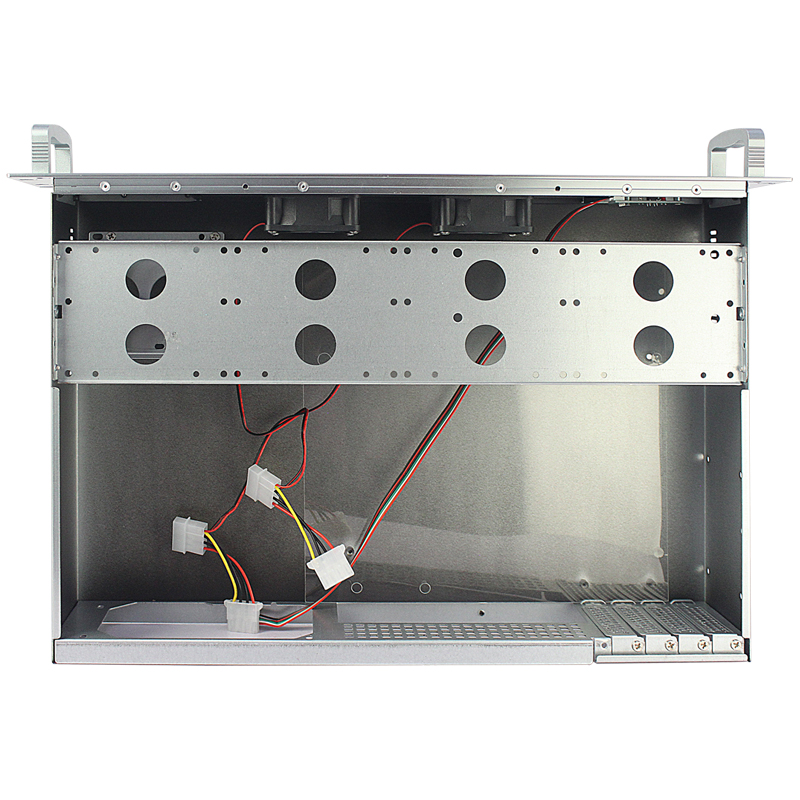

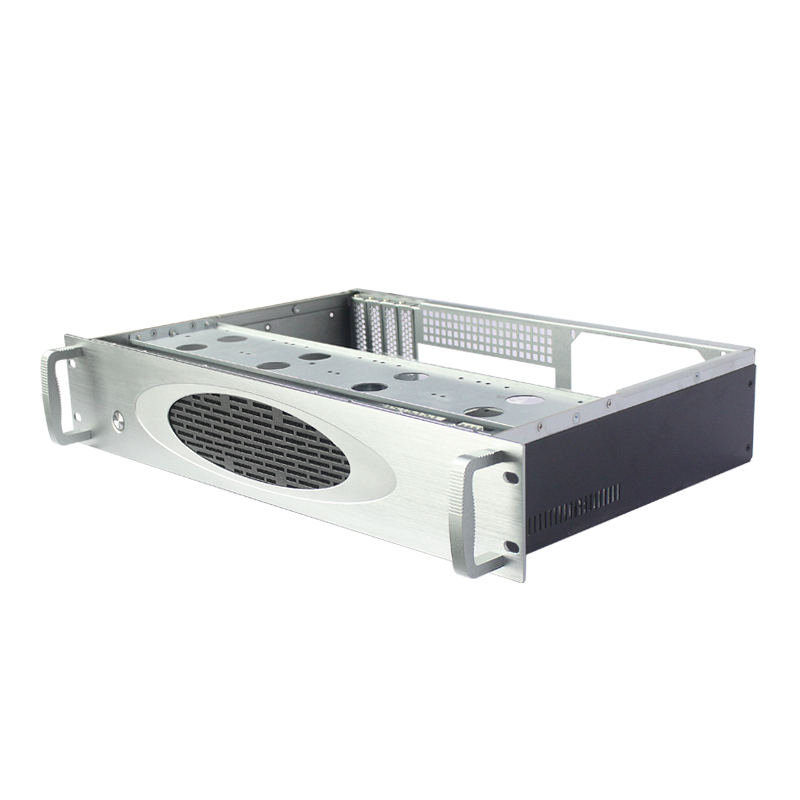

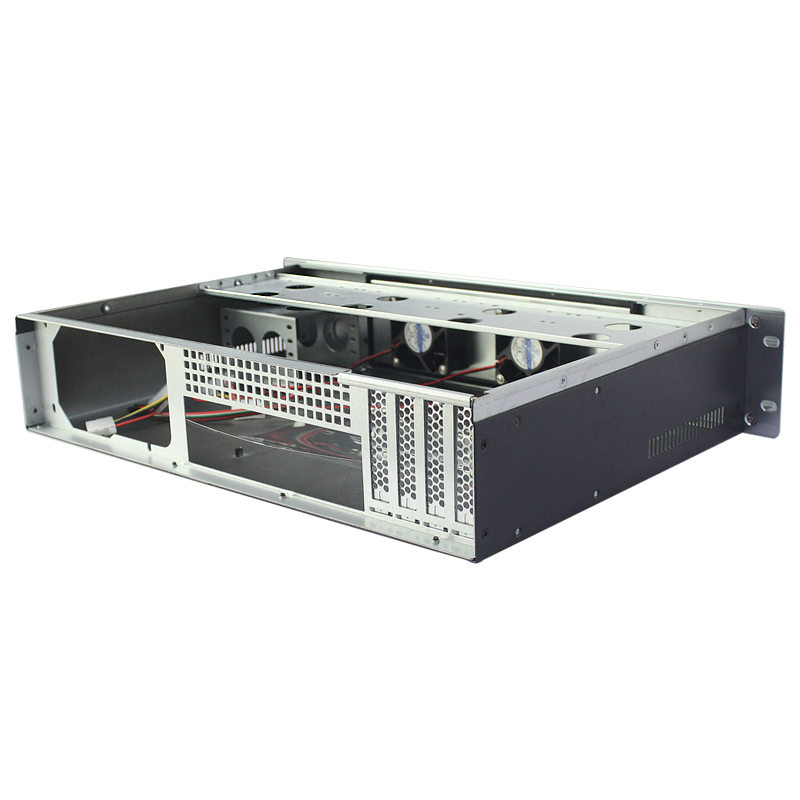

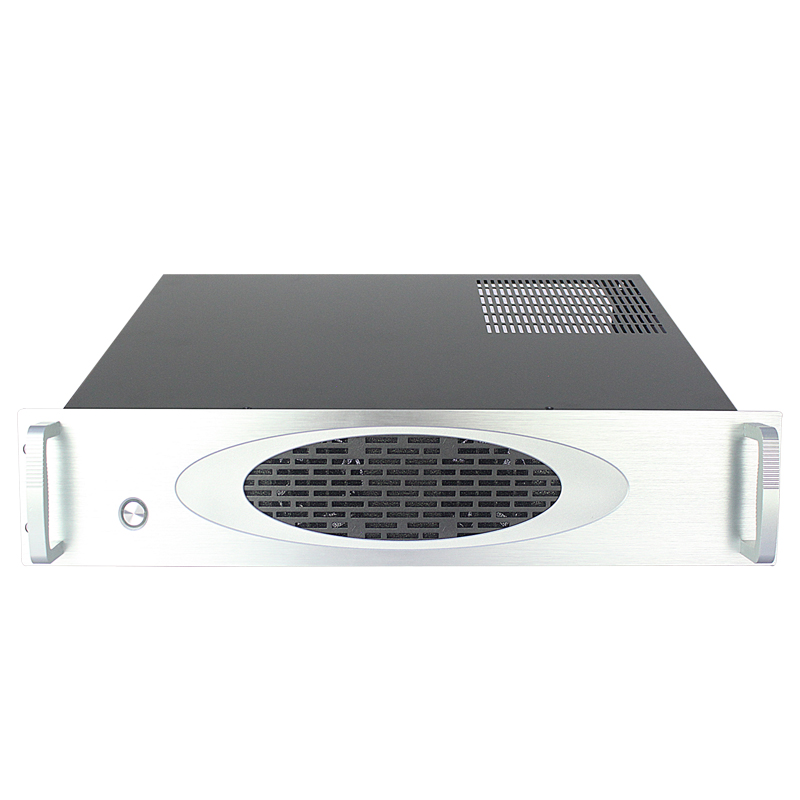

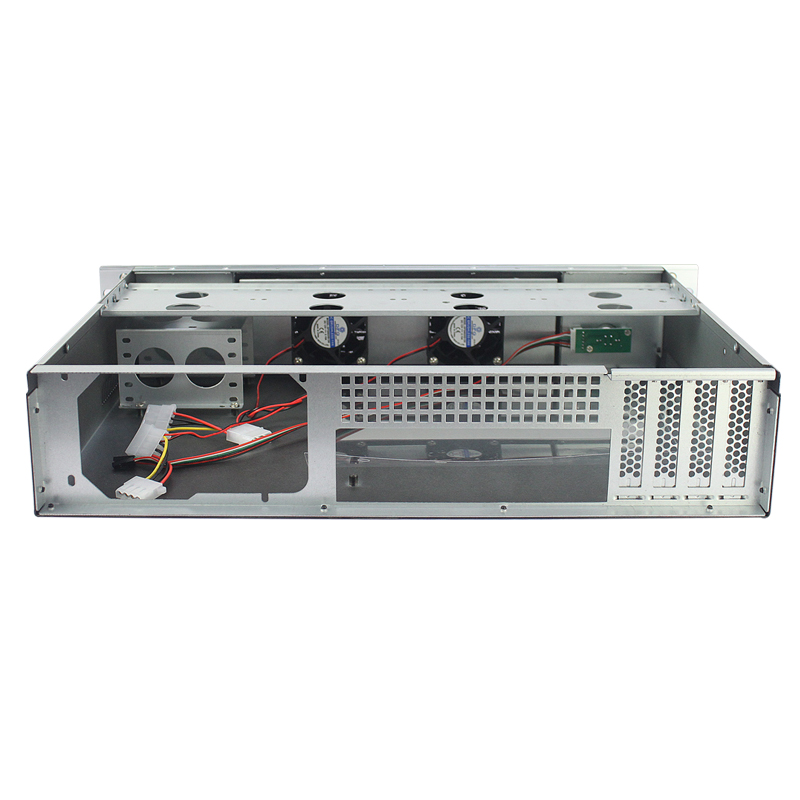

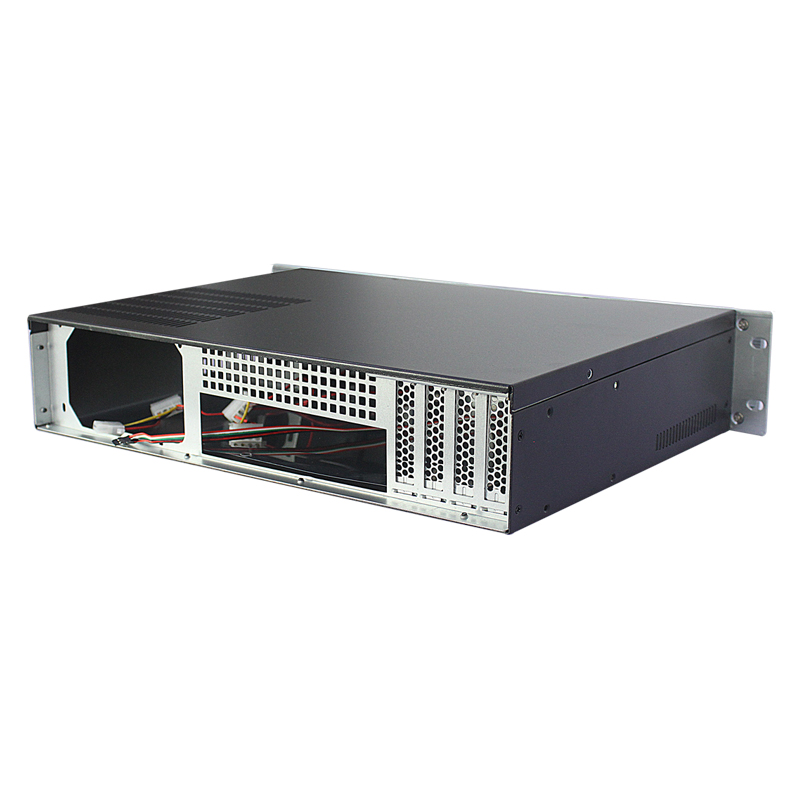

G230 Industrial Case

Product Feature:

G230  is a kind of standard 19" processing industry Case with the height of 2U by applying high-quality Ma Steel flowers-free zinc plating. Featuring novel structural design, it is solid, compact and reasonable in design and easy for installation and operation. Meanwhile, it can support  four 3.5-inch hard disks,Meanwhile, the company’s products are widely applied in different sectors including industrial automation, communication, electricity, network safety, intelligent transportation, video surveillance, medical care, military industry/aerospace industry, self-service terminal, date storage, digital signage, car-mounted computer and 3C application etc.

Technical Parameters:

Dimensions

482(W)*300(D)* 89 mm(H)

Main Board

 9.6"* 9.6"(245*245MM)

Hard Disk

Four 3.5-inch Hard Disks or 7*2.5" HDD

CD-ROM

No

Power

ATX PSU

Fan

 Two 6025 Fans

Expansion Slot

Four Half High and Straight PCI-E Slots

Panel Setting

One power switch with Indicator

Case Material

SGCC

Material Thickness

1.0MM

Delivery time

1 Week for sample ,2 Weeks for mass goods

Payment Terms

30%TT Prepay 70%TT before shipment
