5U server chassis 19inch Industrial Server case for EEB 16*3.5" HDD

Module

K545N  Industrial Case

Product Feature:

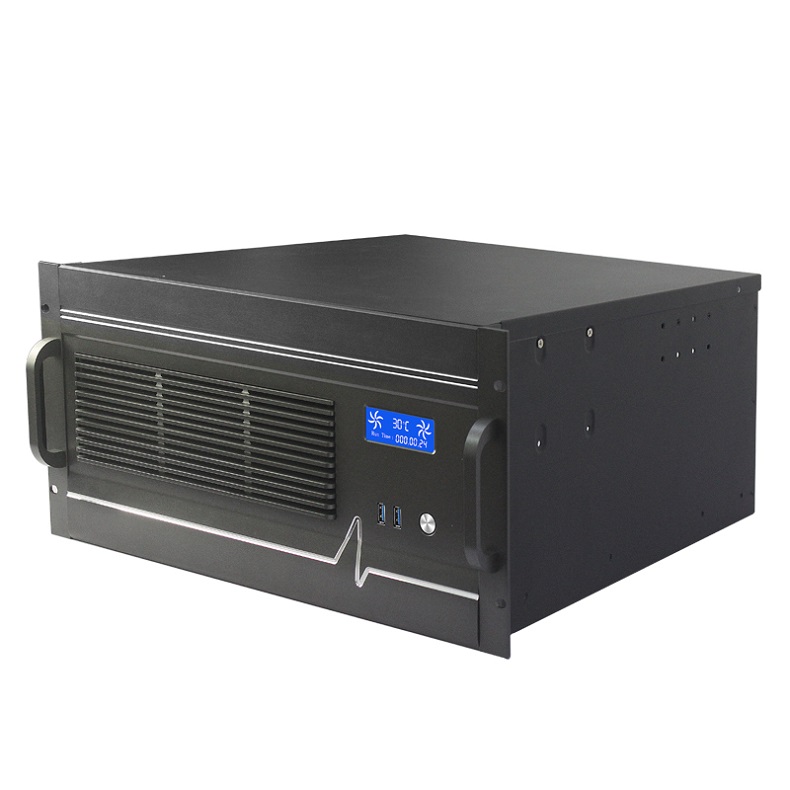

K545N was one kind of standard 19" processing industry Case with the height of 5U by applying high-quality Ma Steel flowers-free zinc plating. Featuring novel structural design, it is solid, compact and reasonable in design and easy for installation and operation. Meanwhile, it contains the TEMP screen for temperature control.It can support  16*3.5 HDD ,Meanwhile, the company’s products are widely applied in different sectors including industrial automation, communication, electricity, network safety, intelligent transportation, video surveillance, medical care, military industry/aerospace industry, self-service terminal, date storage, digital signage, car-mounted computer and 3C application AI etc.

Technical Parameters:

Dimensions

482(W)*450(D)*222 mm(H)

Main Board

EATX 12*13(305*345) CEB:12*10.5"(305*266.7mm)M-ATX:9.6*9.6"(245*245mm)  ITX :7*7"(170*170mm)

Hard Disk

16* 3.5-inch Hard Disk or 16*2.5" HDD

CD-ROM

None

Power

 ATX Power Supply/1+1 Redundant PSU

Fan

2*12025 fan

Expansion Slot

Seven Full High and Straight Slots

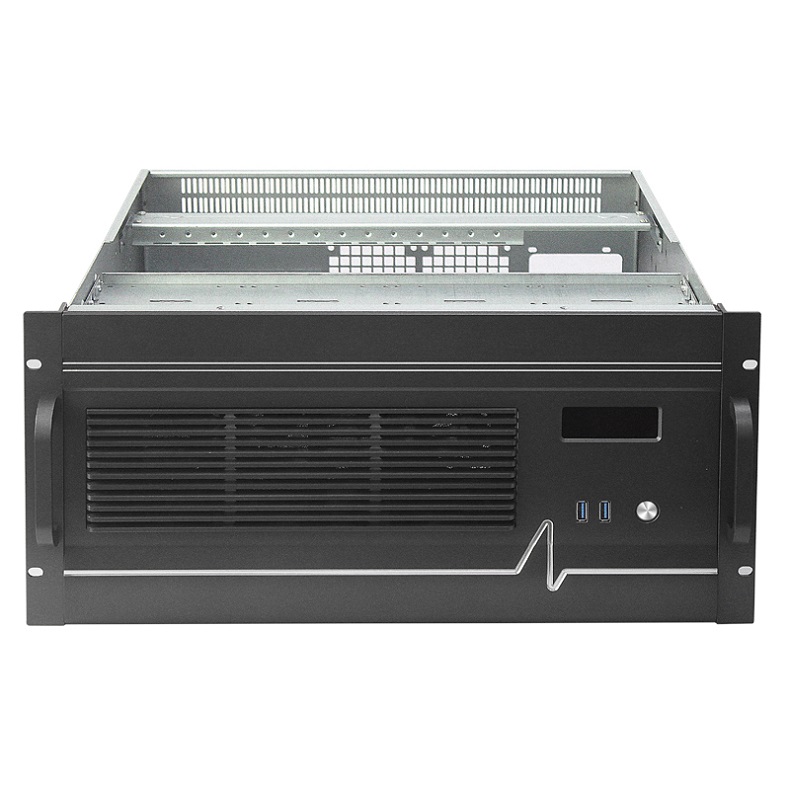

Panel Setting

2*USB3.0; One Power Switch with indicator; Aluminum Cooling panel

Case Material

SGCC and Aluminum panel

Material Thickness

1.2MM

G.W/N.W

G.W:20.3KGS/N.W:17.2KGS

Carton Size

Container quantity

Delivery time

1 Week for sample ,2 Weeks for mass goods
