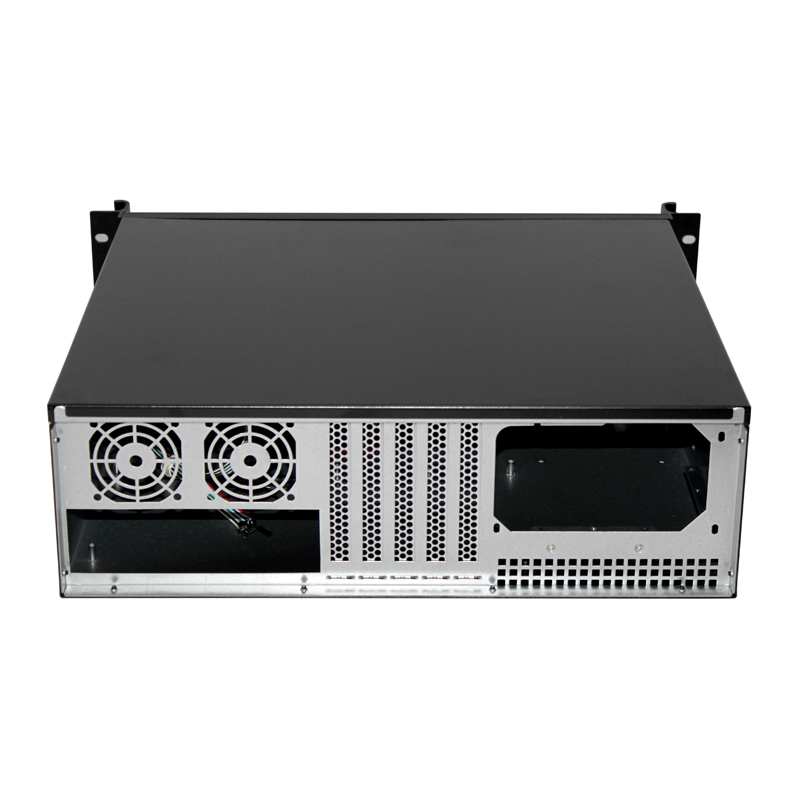

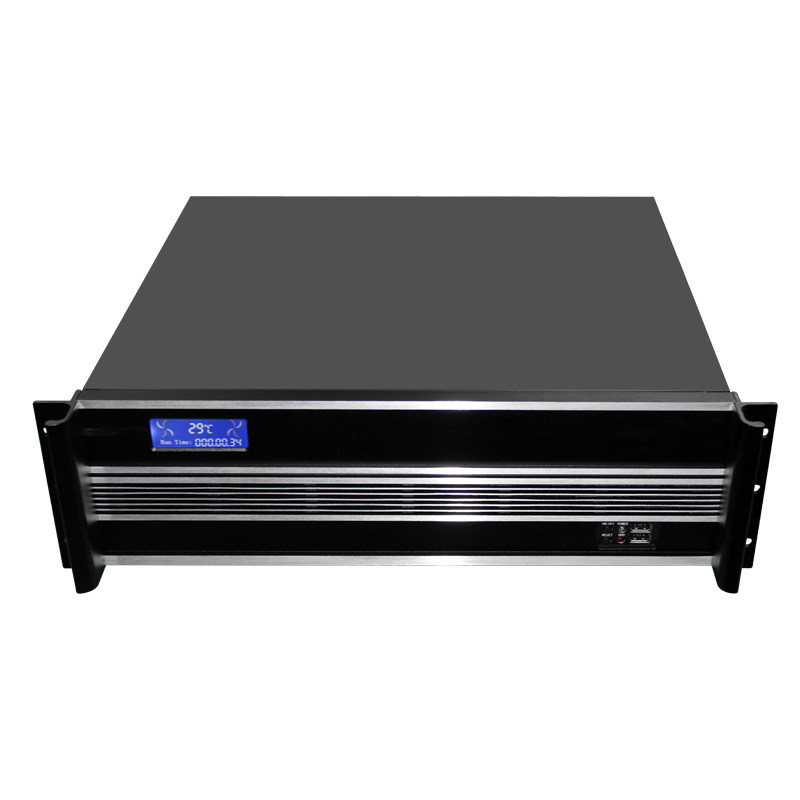

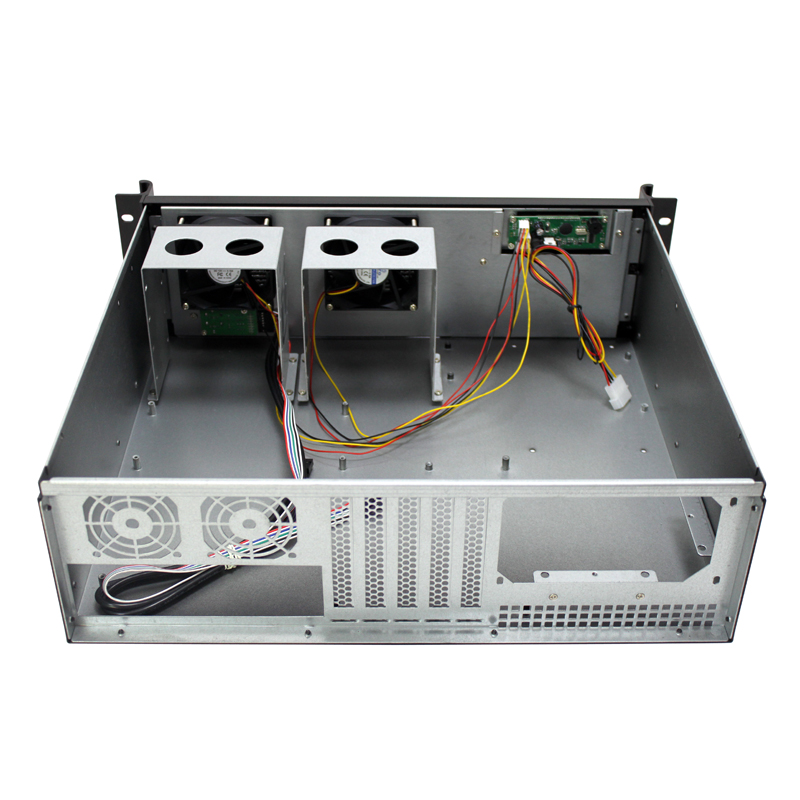

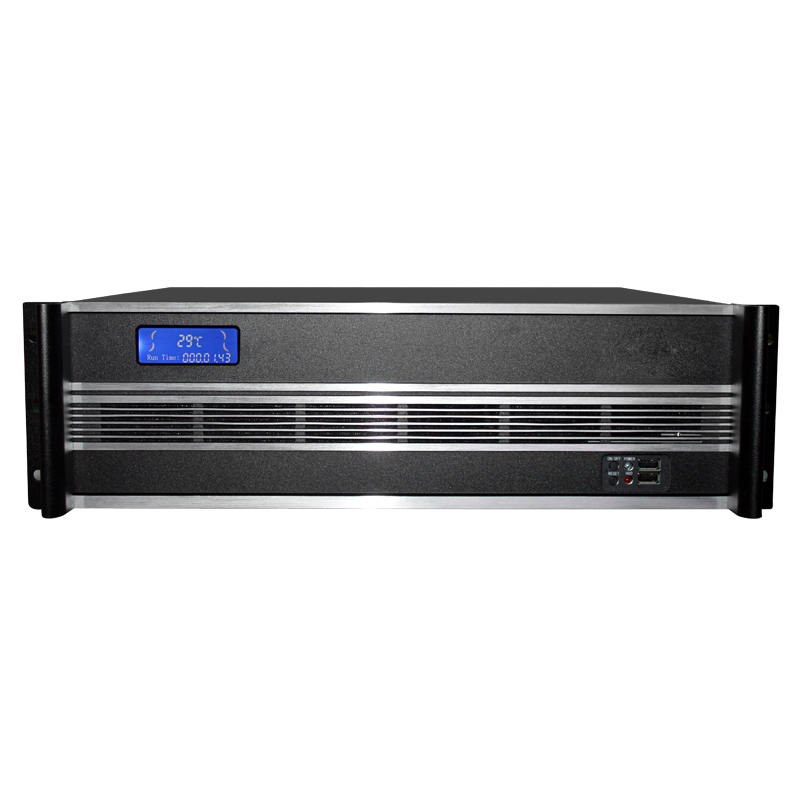

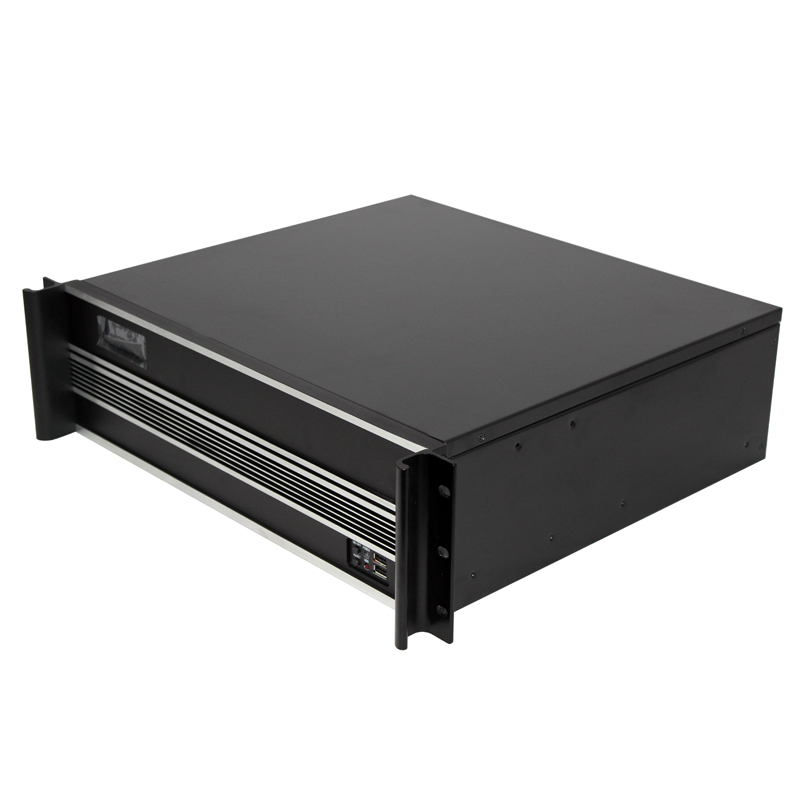

Fashion 19 Inch Rack Mount Chassis 3u 19 inch equipment and support 2*8025 fans 12*9.6mainboard 8*3.5inch hdd

Module

C339L2  Industrial Case

Product Feature:

Featuring 19-inch rack-mounted design and 390mm frame, it has applied 1.0mm Ma Steel flowers-free zinc plating,There contains the temperature LCD can know the machine working status and do the speed control .

Technical Parameters:

Dimensions

482(W)* 390(D)*133.5MM(H)

Main Board

12"*9.6"(305*245MM)

Hard Disk

Eight 3.5-inch Hard Disks

CD-ROM

None

Power Supply

Ordinary Desk-type ATX Power Supply PS2

Fan

2*8025 Fan

Expansion Slot

Five Full High and Straight Slots

Panel Setting

Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator and One HD Indicator

Case Material

Ma Steel flowers-free zinc plating

Material Thickness

1.0MM

Delivery time

1 Week for sample ,2 Weeks for mass goods

Payment Terms

30%TT Prepay 70%TT before shipment
