Module |

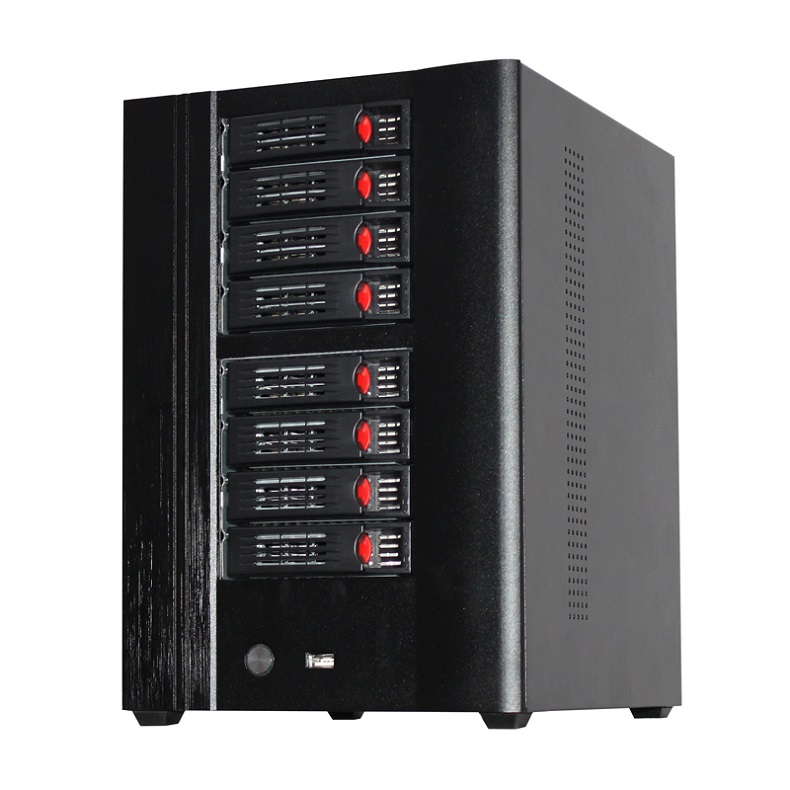

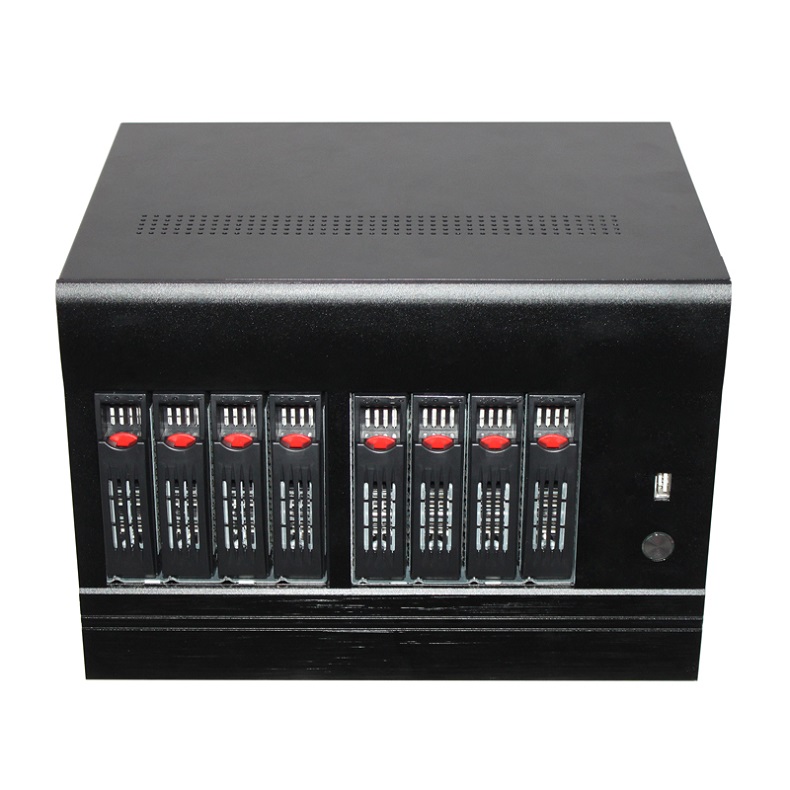

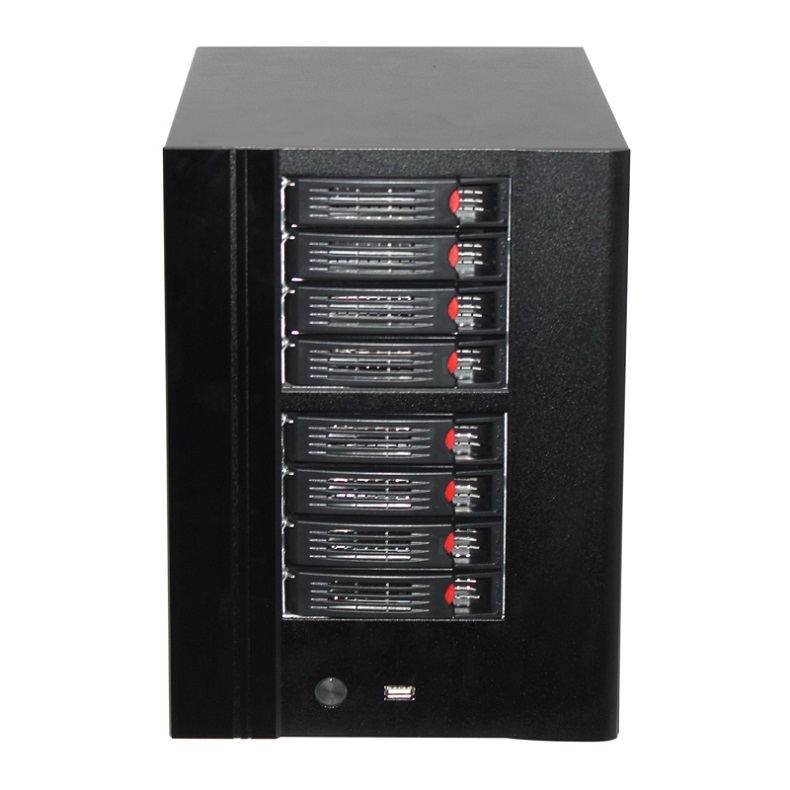

NAS 8Bay Industrial Case |
|
Product Feature: |
|
|
Application: 1. Internet Server(Web/Mail) 2. Firewall/VPN,Enterprise Internet applications, backup; Personal storage; 3. HTPC,File Server Features: 1. USB2.0 opctional 2.support sata backplane 3.sata / sas HDD support 4.OEM/ODM are welcome |
|
|
Technical Parameters: |
|
|
Dimensions |
220.4(W)*244.5(D)*311.7(H) |
|
Main Board |
7*7(170*170mm) |
|
Hard Disk |

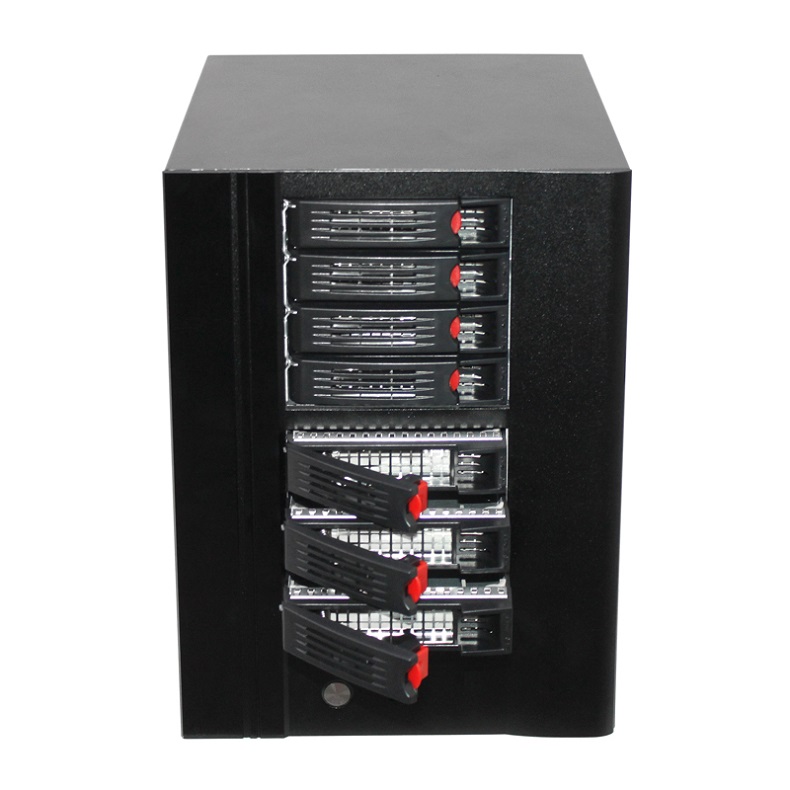

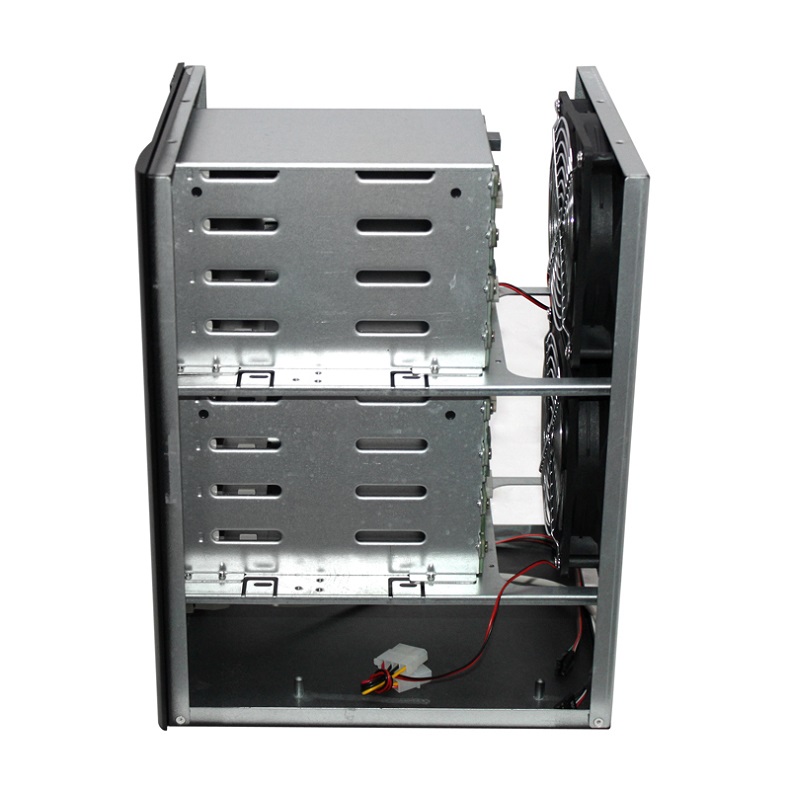

Eight Hot swap for 3.5-inch HDD |
|
CD Room |
None |
|
Power |
flex power |
|
Fan |

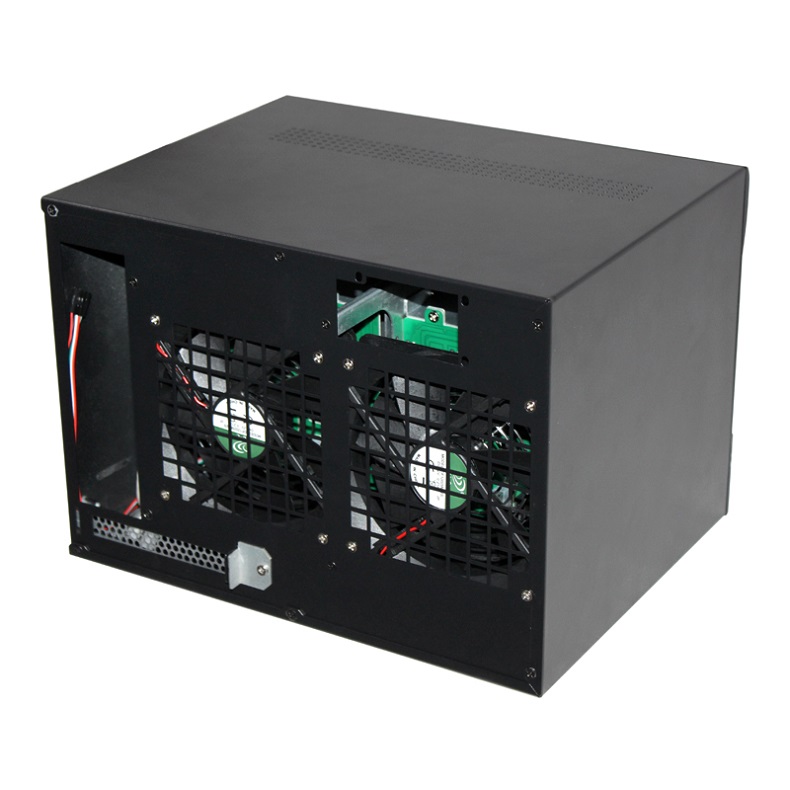

2*12025 |
| Expansion slot | One Full High and Straight Slot |
|
Panel Setting |
One Power Switch with Indicator HDD Indicator |
|
Case Material |
Ma Steel flowers-free zinc plating and Aluminum panel |
• Dimensions(mm)：220.4(W)*244.5(D)*311.7(H)
• Main Board：7"*7"(170*170MM)
• Hard Disk：Eight Hot swap for 3.5-inch HDD
• CD-ROM： None
• Power：flex power
• Fan： 2*12025
• Expansion Slot： One Full High and Straight Slot
• Panel Setting：One Power Switch with Indicator HDD Indicator
• Case Material：Ma Steel flowers-free zinc plating and Aluminum panel
• Material Thickness：1.2MM
• Packaging size：39*33*27（0.036CBM）
• Gross weight：6.82KG
• N.W：5.76KG
• Container loading quantity：20＂:777 40＂:1611 40HQ＂：1888
