K231L 2u Rackmount High Disk I/O Nas Performance Server short Case max support ATX Mainboard

Module

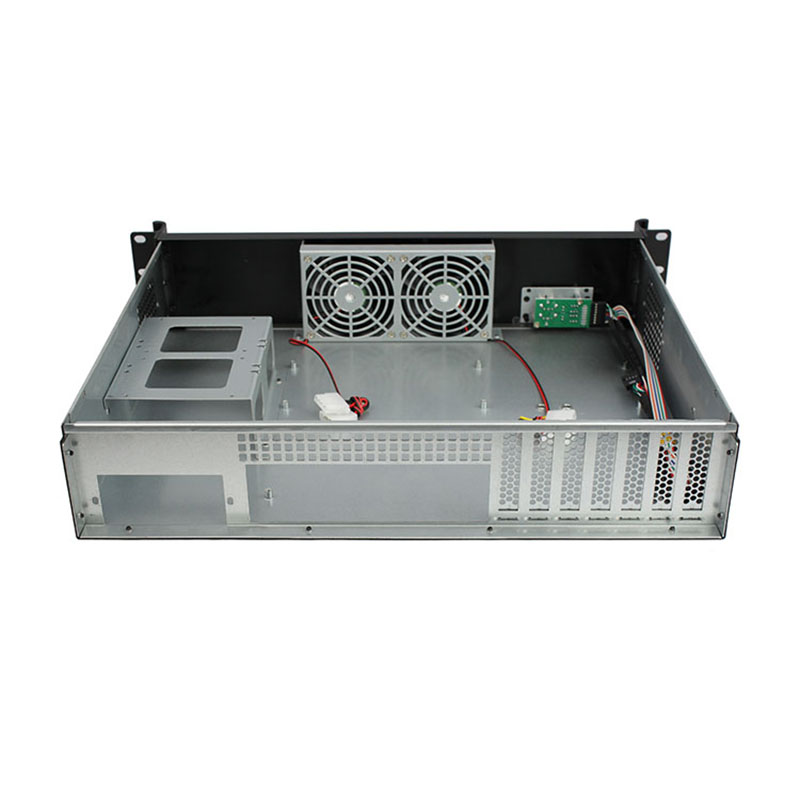

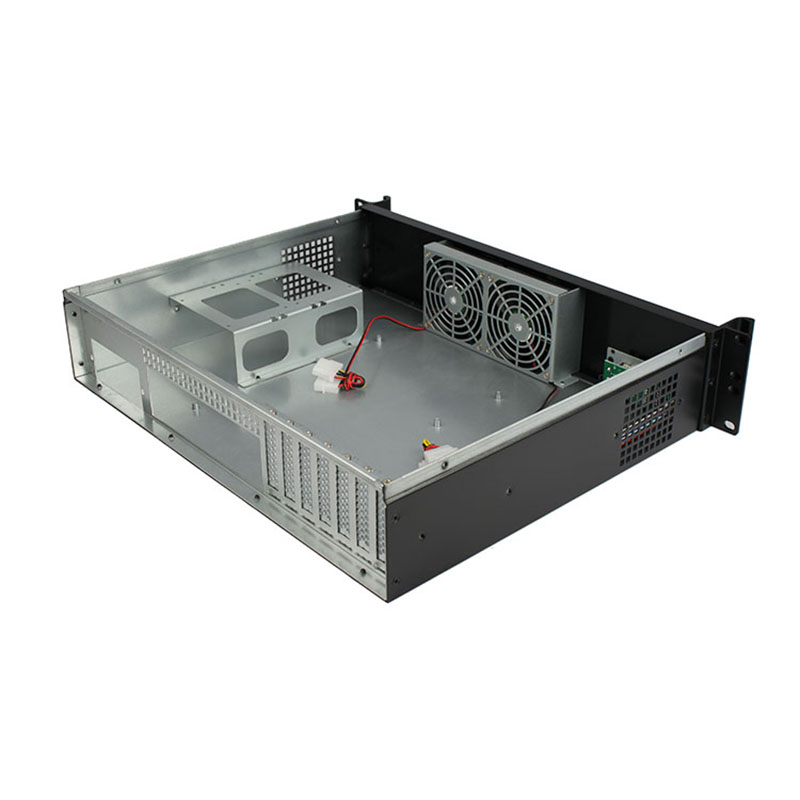

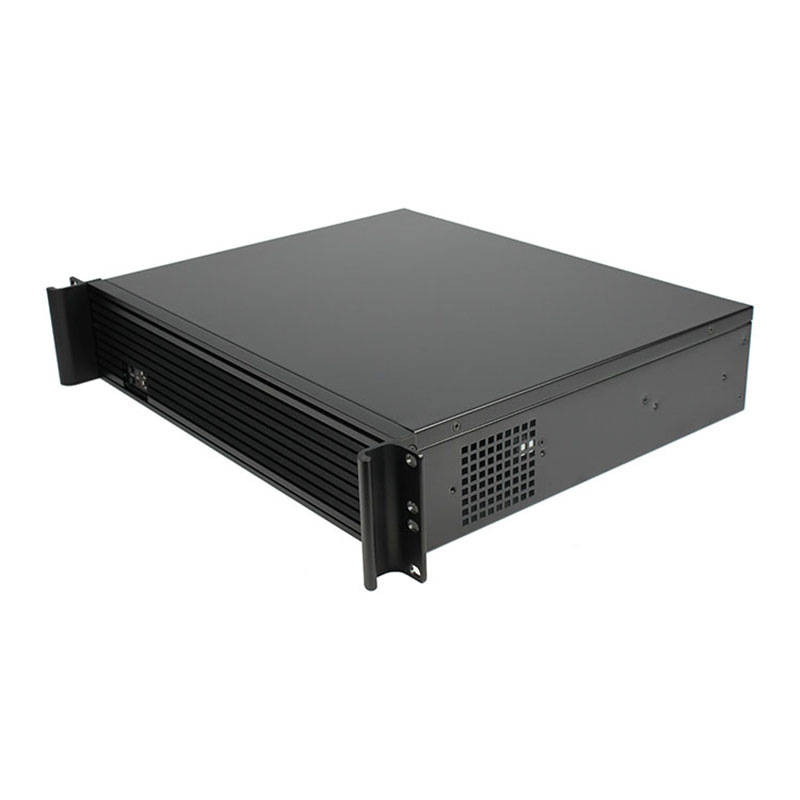

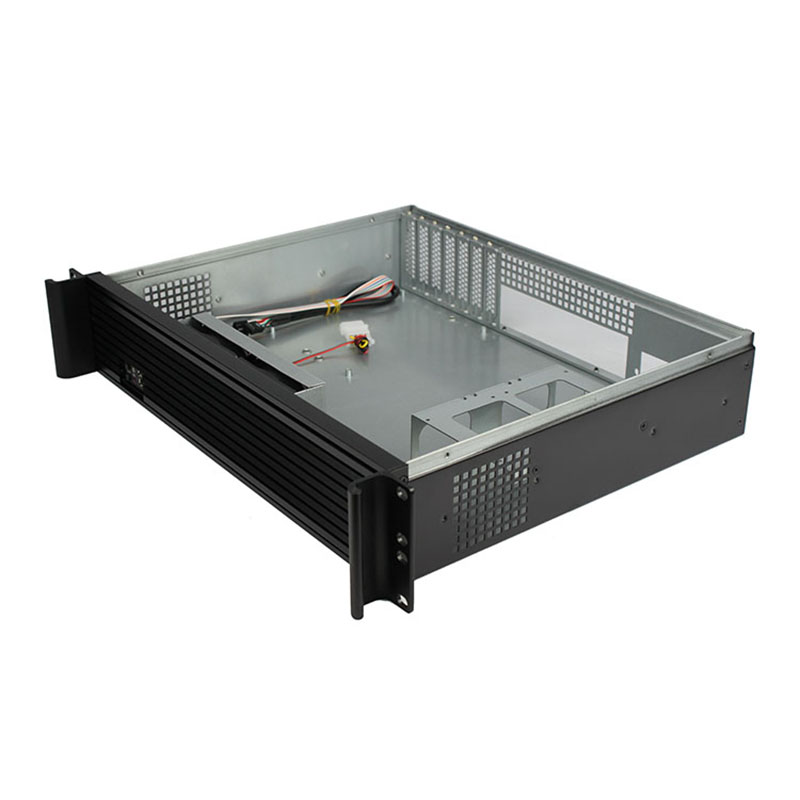

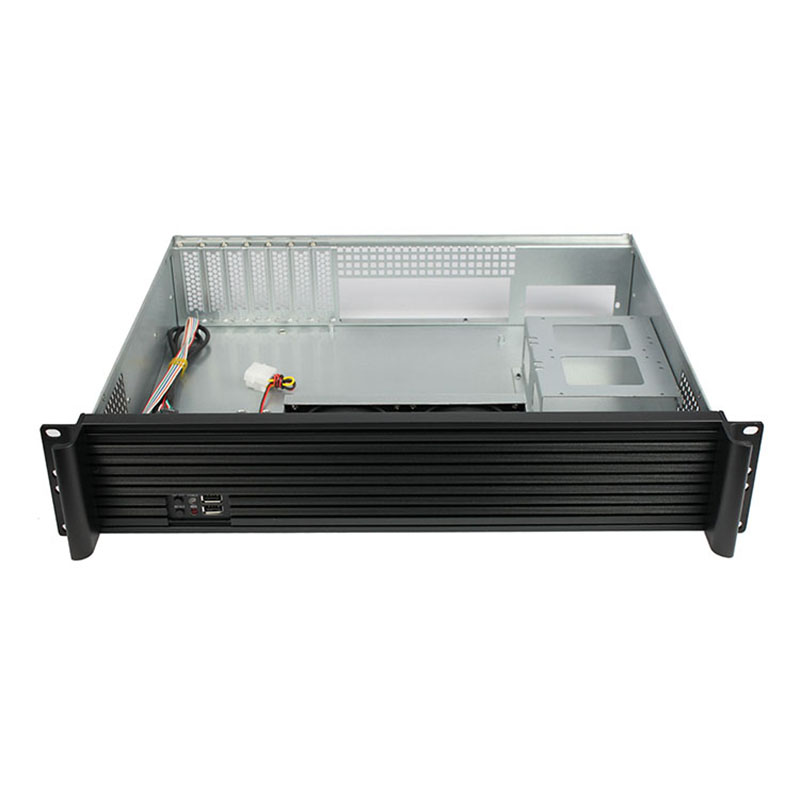

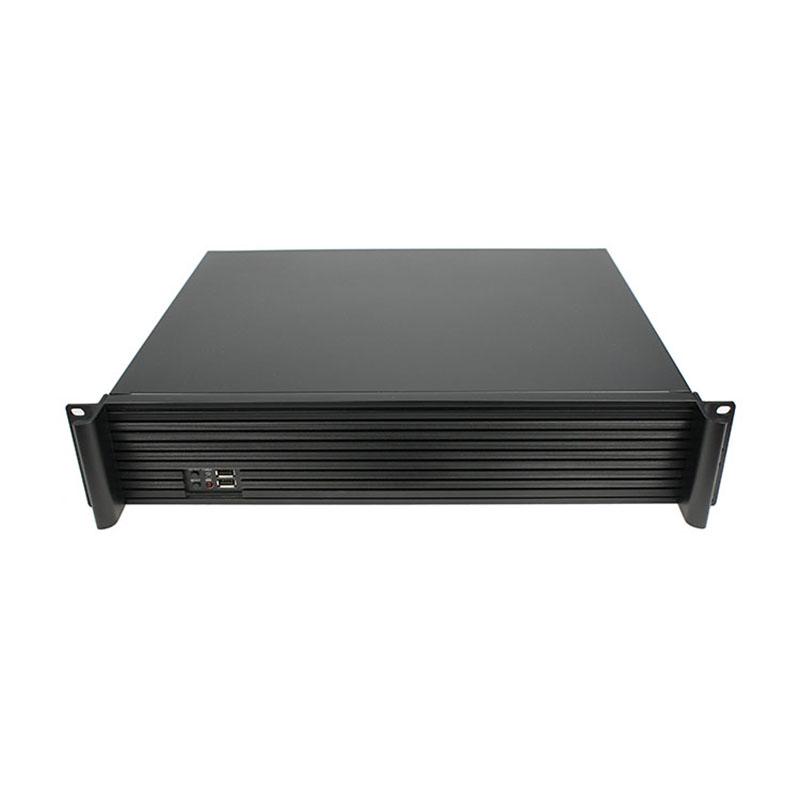

K231L Industrial Case

Product Feature:

K231L  is a kind of standard 19" processing industry Case with the height of 2U by applying high-quality Ma Steel flowers-free zinc plating. Featuring novel structural design, it is solid, compact and reasonable in design and easy for installation and operation. Meanwhile, it can support two 5.25 -inch hard disks and one 3.5-inch hard disk,Meanwhile, the company’s products are widely applied in different sectors including industrial automation, communication, electricity, network safety, intelligent transportation, video surveillance, medical care, military industry/aerospace industry, self-service terminal, date storage, digital signage, car-mounted computer and 3C application etc.

Technical Parameters:

Dimensions

482(W)*350(D)* 89 mm(H)

Main Board

12"* 9.6"(305*245MM)

Hard Disk

Two 2.5-inch Hard Disks or One 3.5-inch Hard Disks

CD-ROM

None

Power

1U Special Power Supply

Fan

Two 8025 Fans

Expansion Slot

Seven Half High and Straight Slots (Riser Card is needed/Optional)

Panel Setting

Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator

Case Material

Ma Steel flowers-free zinc plating

Material Thickness

1.2MM

Delivery time

1 Week for sample ,2 Weeks for mass goods

Payment Terms

30%TT Prepay 70%TT before shipment
