Module |

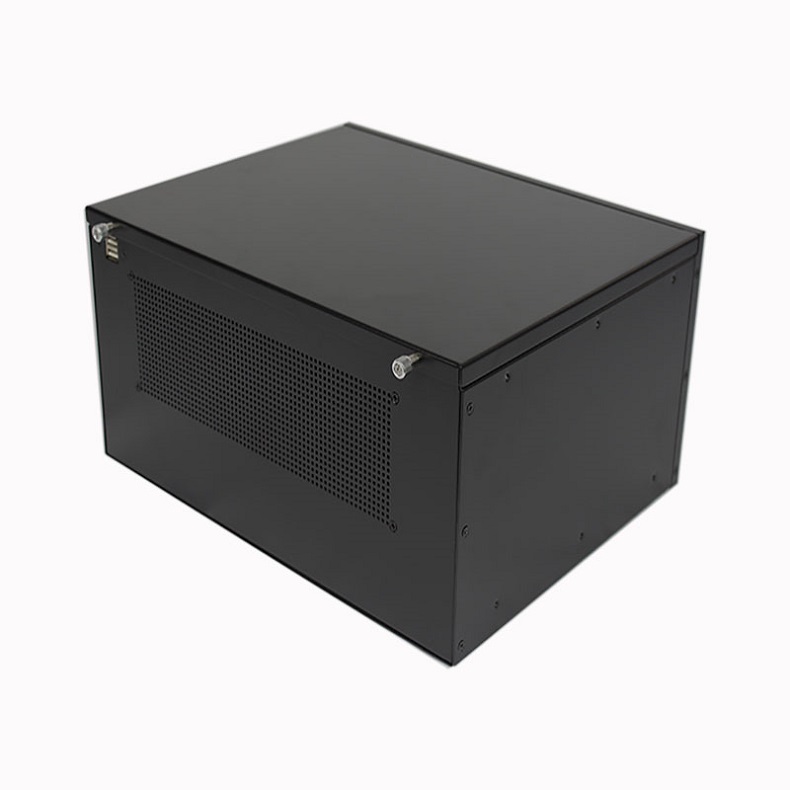

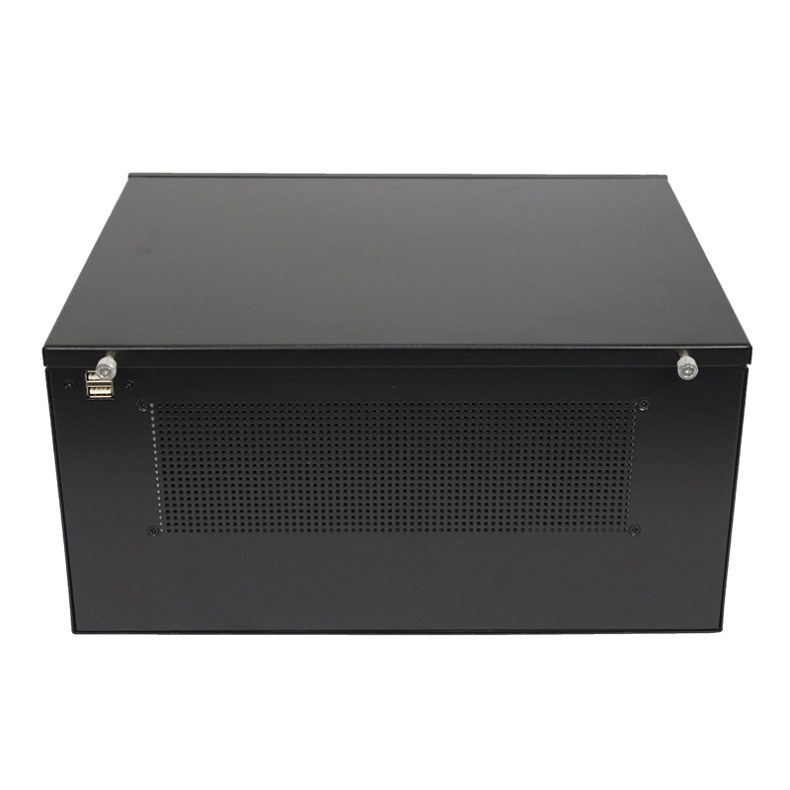

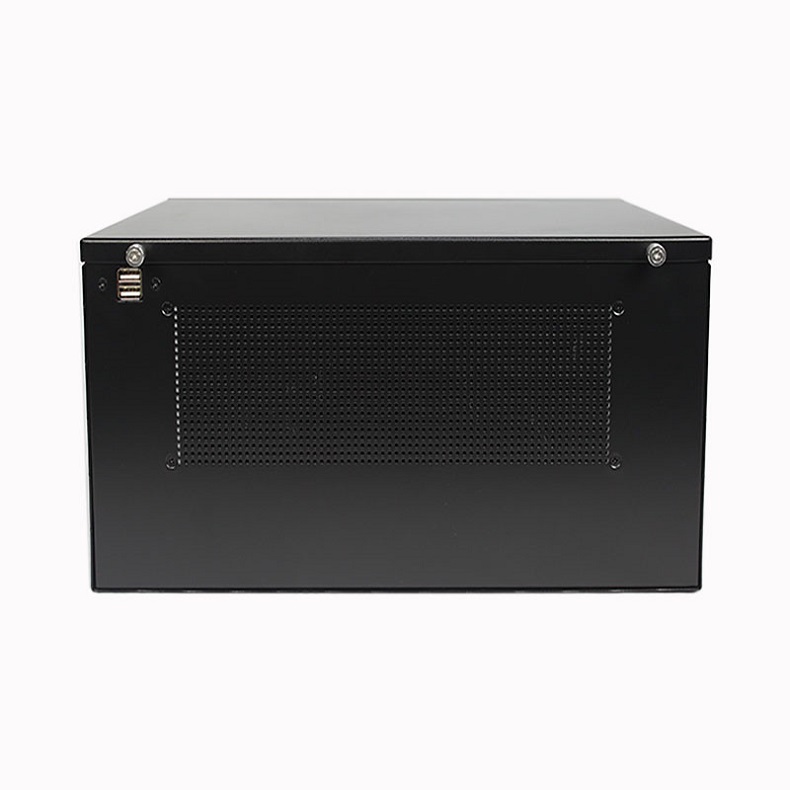

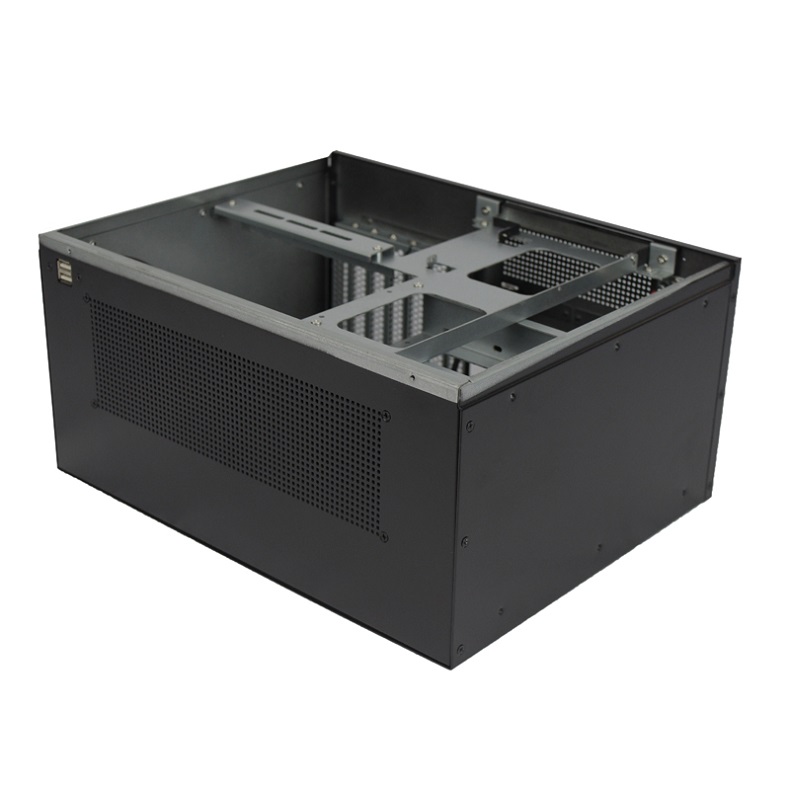

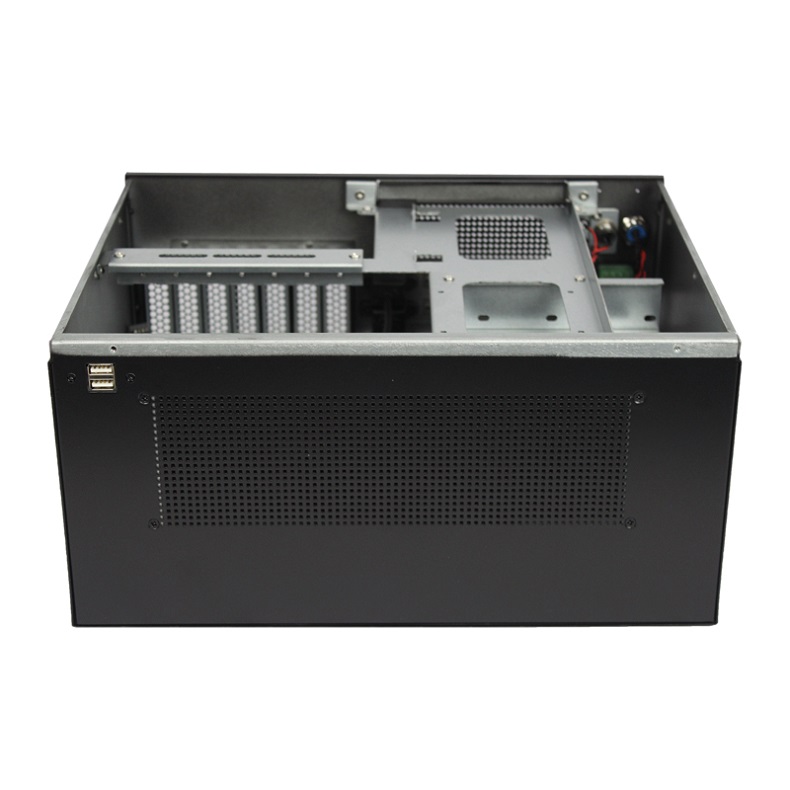

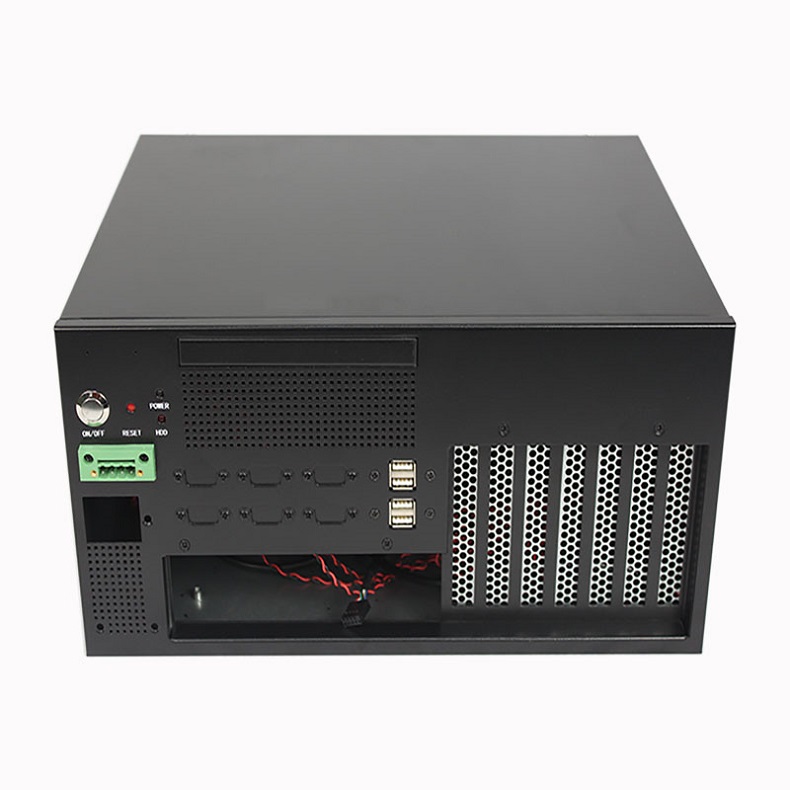

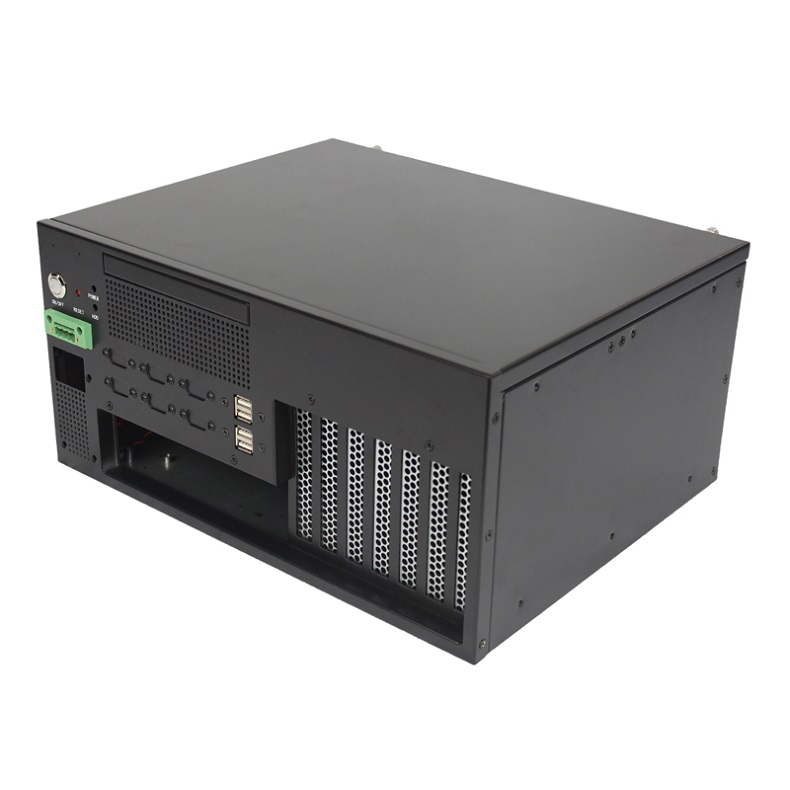

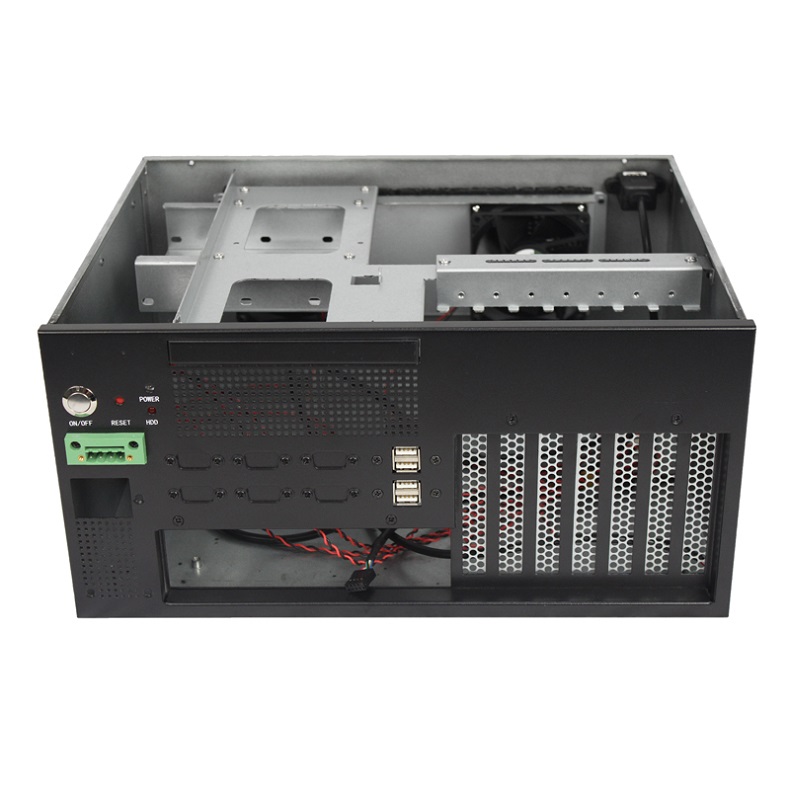

T429F-1 Industrial Case |
|
Product Feature: |
|
|
T429F-1 Was one kind of standard wall mounted industrial Case with com Indicator and USB connector.Besides contains 7 unites expansion slot for the PCIE card . ;Meanwhile, Our products are widely applied in different sectors including industrial automation, communication, electricity, network safety, intelligent transportation, video surveillance, medical care, military industry/aerospace industry, self-service terminal, date storage, digital signage, car-mounted computer and 3C application. |
|
|
Technical Parameters: |
|
|
Dimensions |
364(W)*289(D)*177.6(H)mm |
|
Main Board |
ATX:12*9.6"(305mm*245mm) |
|
Hard Disk |
One 3.5-inch Hard Disk or2*2.5 HDD |
|
CD-ROM |
One notebook drive |
|
Power |
flex PSU |
|
Fan |
Two 8025 Fans |
|
Expansion Slot |
Seven Full High and Straight slot Six com connector |
|
Panel Setting |
One Power switch with Indicator One HDD Indicator one reset
|
|
Case Material |
SGCC |
|
Material Thickness |
1.0MM |
|
G.W/N.W |
9.22KGS/6.2KGS |
|
Carton Size |
49*45.5*31.5CM |
|
Container quantity |
20"390 40"960 40HQ:1020 (pcs) |
|
Delivery time |
1 Week for sample ,2 Weeks for mass goods |
|
Payment Terms |
30%TT Prepay 70%TT before shipment |
• Dimensions(mm)：364(W）*289（D）*177.6MM（H）
• Main Board：12"*9.6"(305*245MM)
• Hard Disk：1*3.5"HDD / 2*2.5" HDD
• CD-ROM：1 Note CD room
• Power：FLEX PSU
• Fan：2*8025 cooling fans
• Expansion Slot：7*full height PCI-E slot
• Panel Setting：Power swith with indicator ,reset ,HDD indicator
• Case Material：SGCC
• Material Thickness：1.0MM
• Packaging size：49.0*45.5*31.5CM
• Gross weight：9.223KG
• N.W：6.190KG
• Container loading quantity：20＂:390 40＂: 960 40HQ＂：1020
