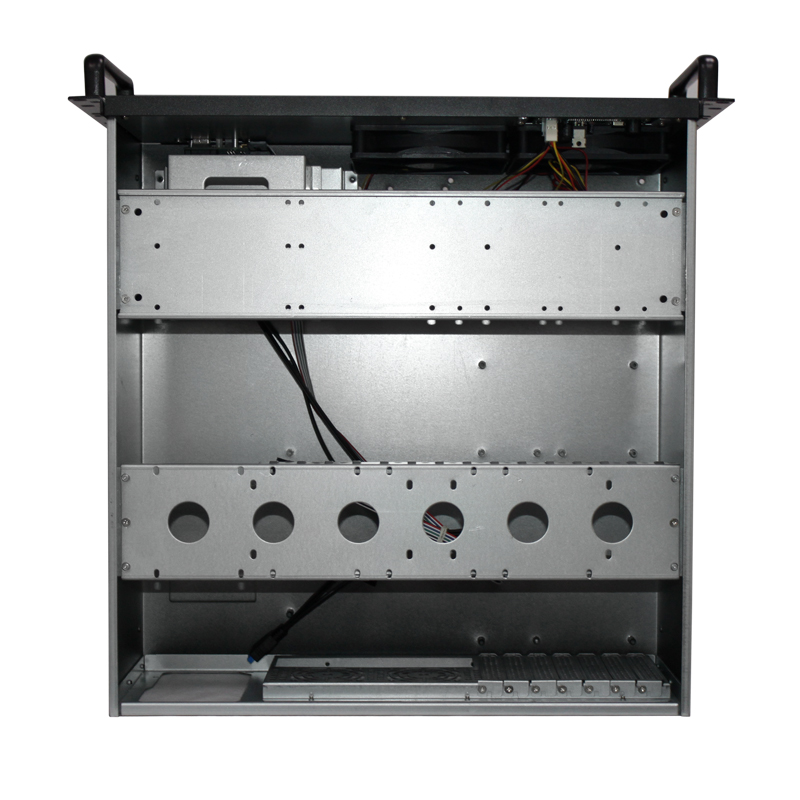

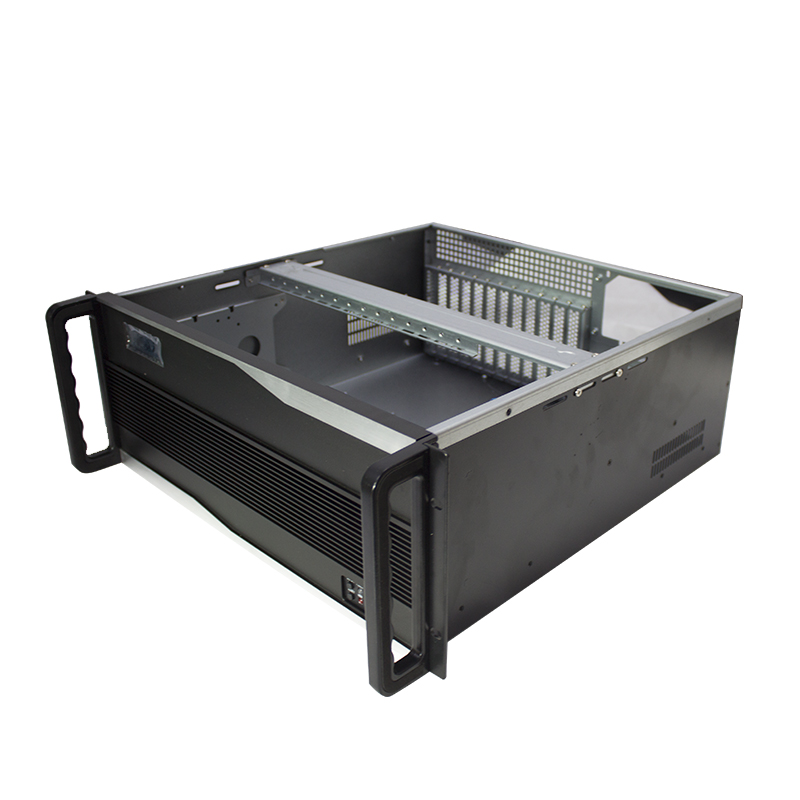

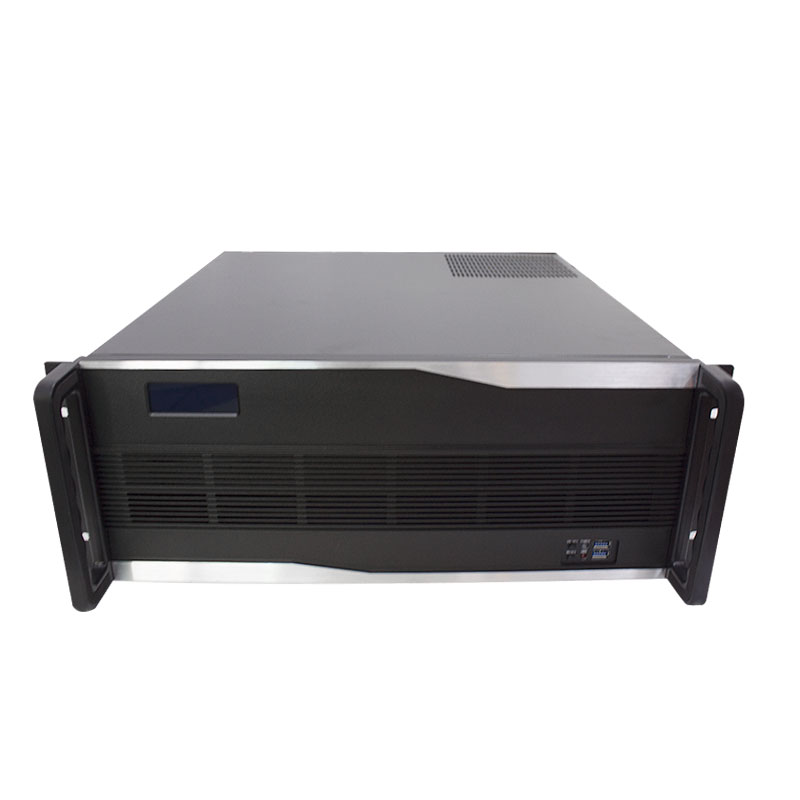

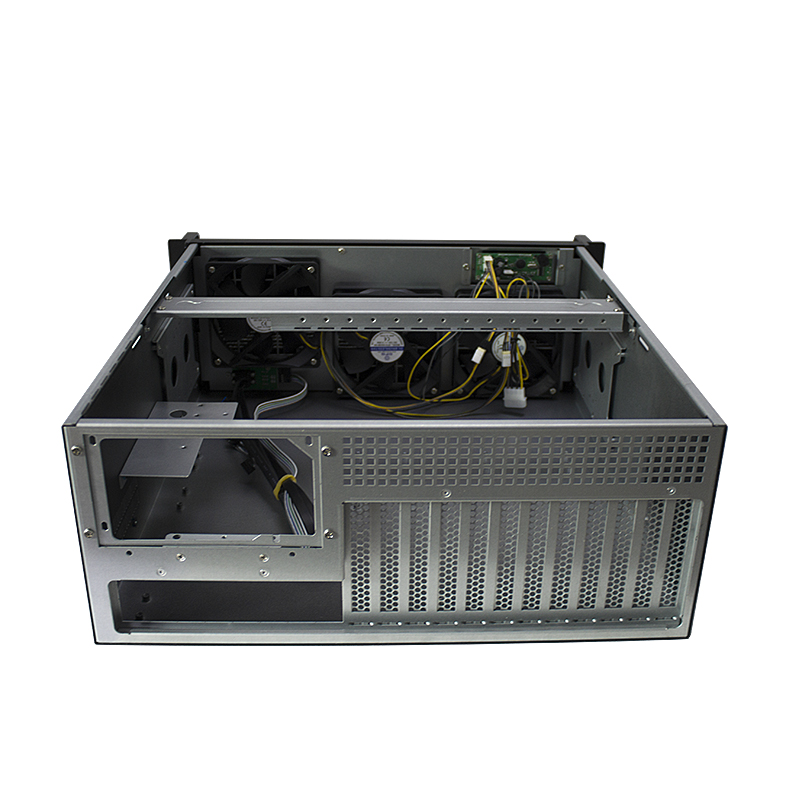

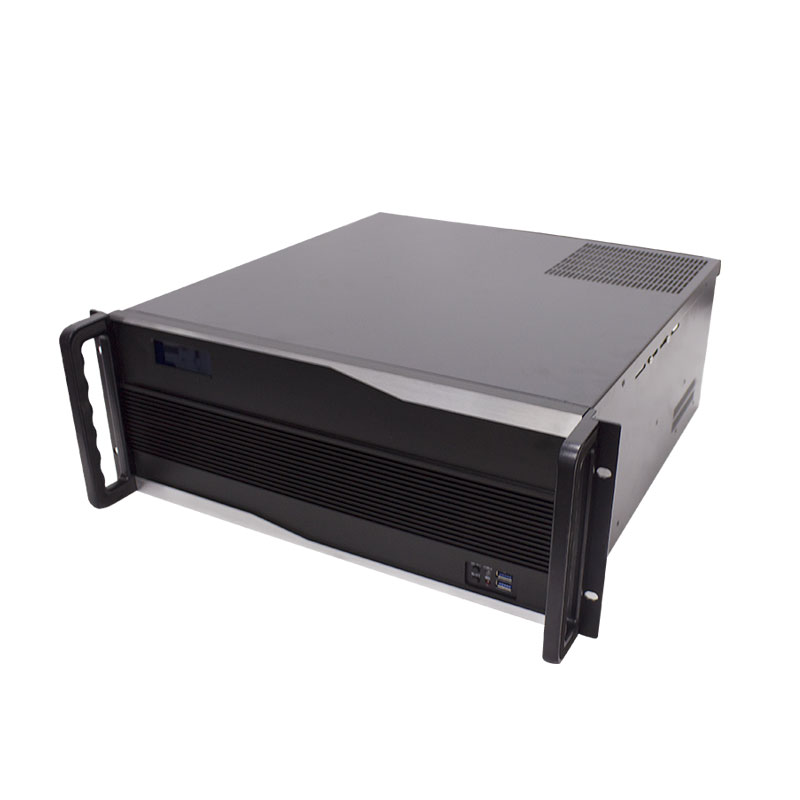

New model with Aluminum panel with LED of AI 19 inch Industrial server case

• Dimensions(mm)： 482(W)*500(D)*178 mm(H)

• Main Board：12"*13"(305* 340MM)

• Hard Disk： Four 3.5-inch Hard Disks and Two 2.5-inch Hard Disks

• CD-ROM：1*5.25-inch CD-ROM

• Power： ATX PSU

• Fan：Two 8028 Fans

• Expansion Slot：Seven Full High and Straight Slots

• Panel Setting：One 8.9-inch 1024*768 LCD; One Keyboard

• Case Material：Ma Steel flowers-free zinc plating

• Material Thickness：1.2MM

• Packaging size：63.5*55.5*29.5CM(0.104CBM)

• Gross weight：17KG

• N.W：14KG

• Container loading quantity：20＂:269 40＂: 558 40HQ＂：654

• Main Board：EEB:15*13(381*345mm) CEB:12*10.5"(305*266.7mm)M-ATX:9.6*9.6"(245*245mm) ITX :7*7"(170*170mm)

• Hard Disk：Two 3.5-inch Hard Disk or 4*2.5 HDD

• CD-ROM：None

• Power：ATX Power Supply

• Fan：Three 12025 Fans(3PIN connector )

• Expansion Slot：Twelve Full High and Straight Slots

• Panel Setting：Two USB3.0; One Power Switch; One Restart Switch; One Power Indicator; One HDD Indicator LED Temperature Screen

• Case Material：SGCC and Aluminum panel

• Material Thickness：1.2MM

• Packaging size：55*58*26CM(0.083CBM)

• Gross weight：10.5KG

• N.W：8.7KG

• Container loading quantity：20＂:320 40＂:800 40HQ＂：850
