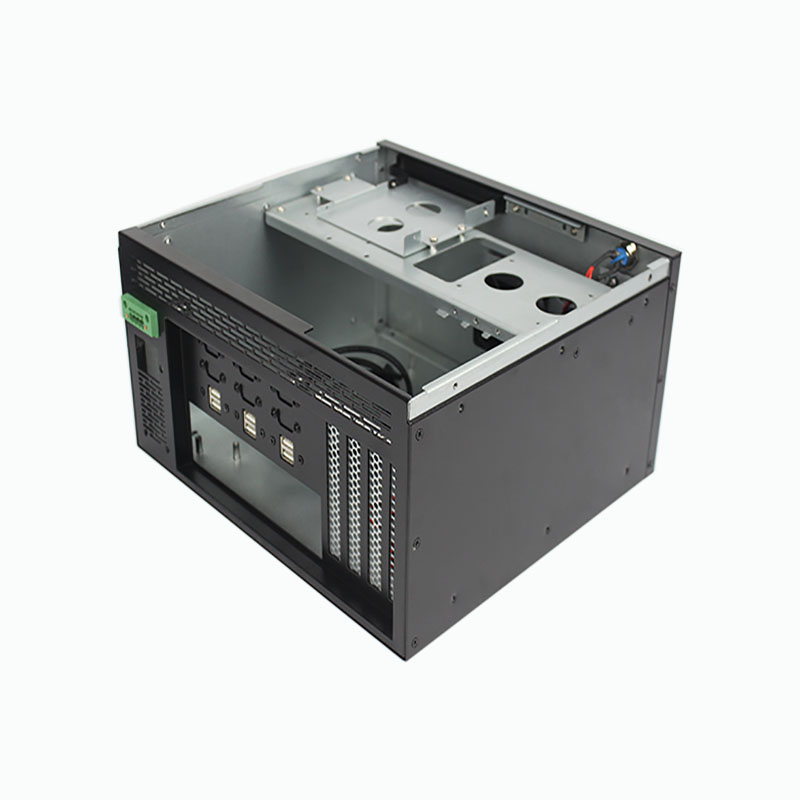

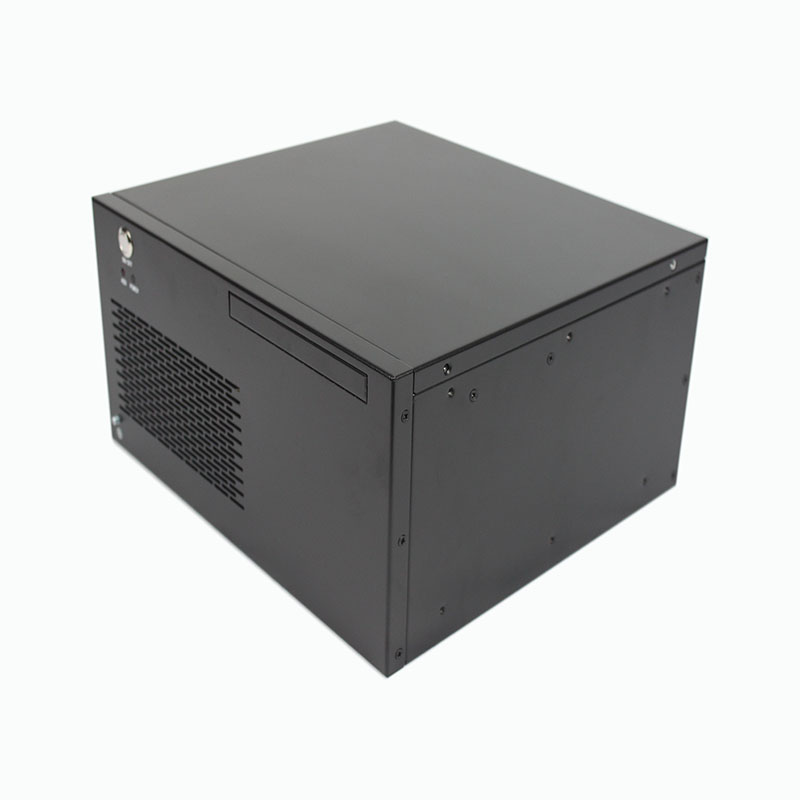

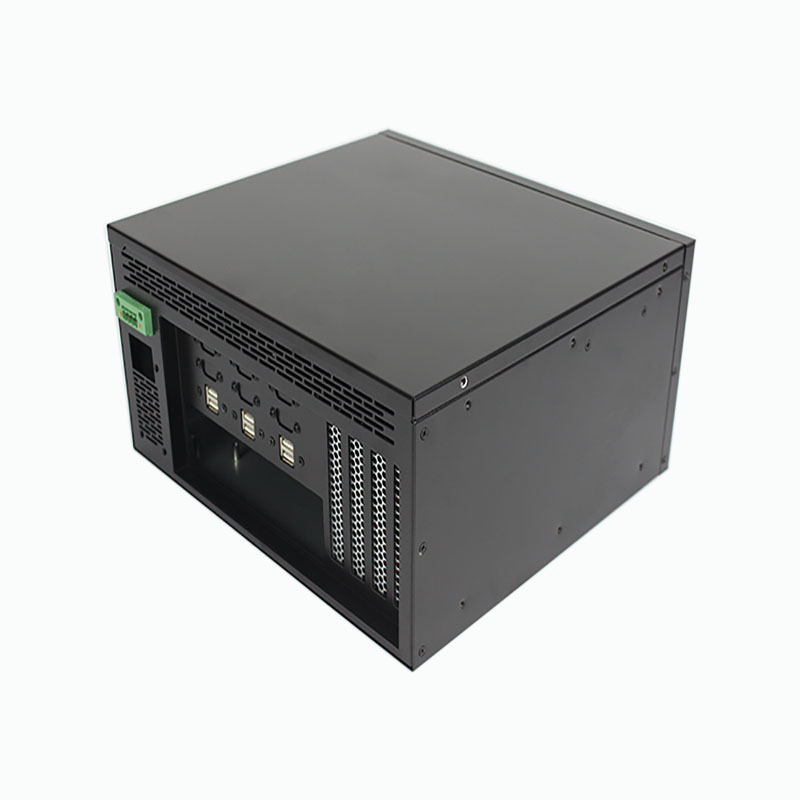

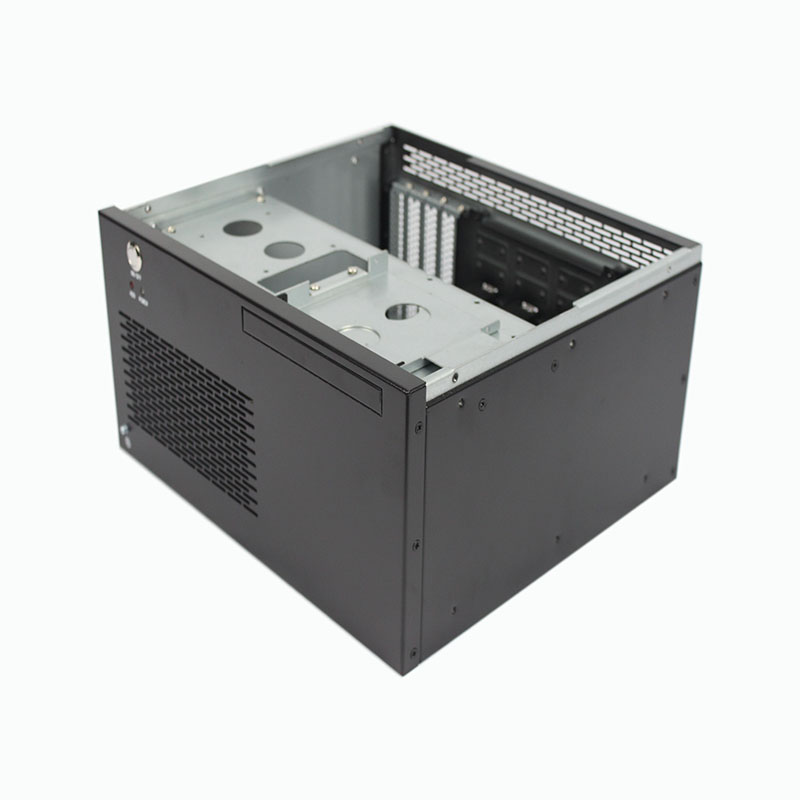

T433F Industrial Case |
|
Product Feature: |
|
|
T433F Was one kind of standard wall mounted industrial Case with com Indicator and USB connector. ;Meanwhile, Our products are widely applied in different sectors including industrial automation, communication, electricity, network safety, intelligent transportation, video surveillance, medical care, military industry/aerospace industry, self-service terminal, date storage, digital signage, car-mounted computer and 3C application. |
|
|
Technical Parameters: |
|
|
Dimensions |
320(W)*290(D)*163(H)mm |
|
Main Board |
M-ATX:9.6*9.6"(245*245mm) |
|
Hard Disk |
One 3.5-inch Hard Disk or2*2.5 HDD |
|
CD-ROM |
One notebook drive |
|
Power |
1U flex PSU |
|
Fan |
Two 6025 Fans |
|
Expansion Slot |

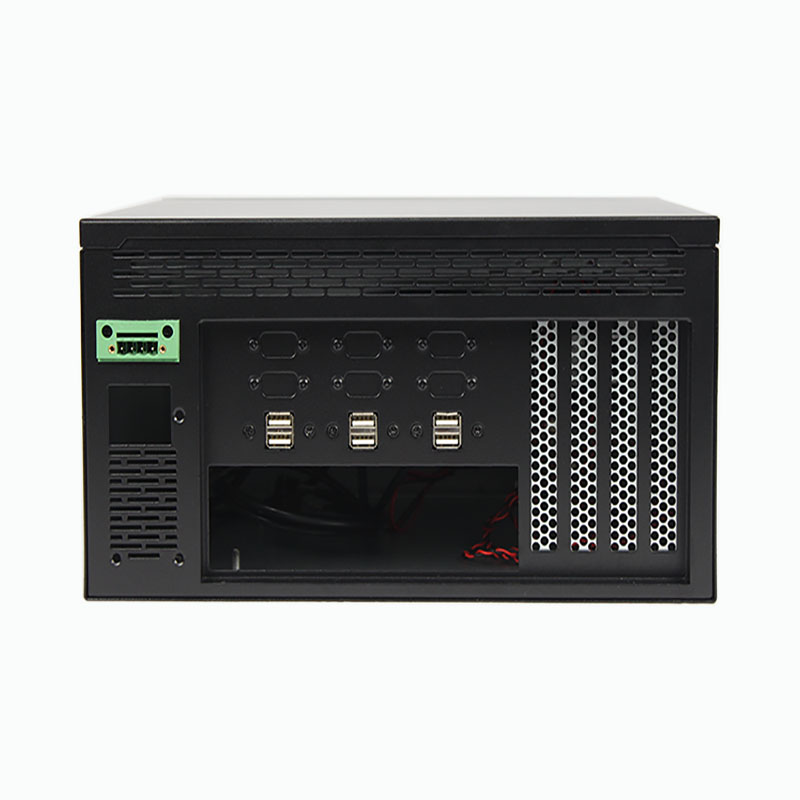

Four Full High and Straight Slots 6*com connector ,6*USB 2.0 connector |
|

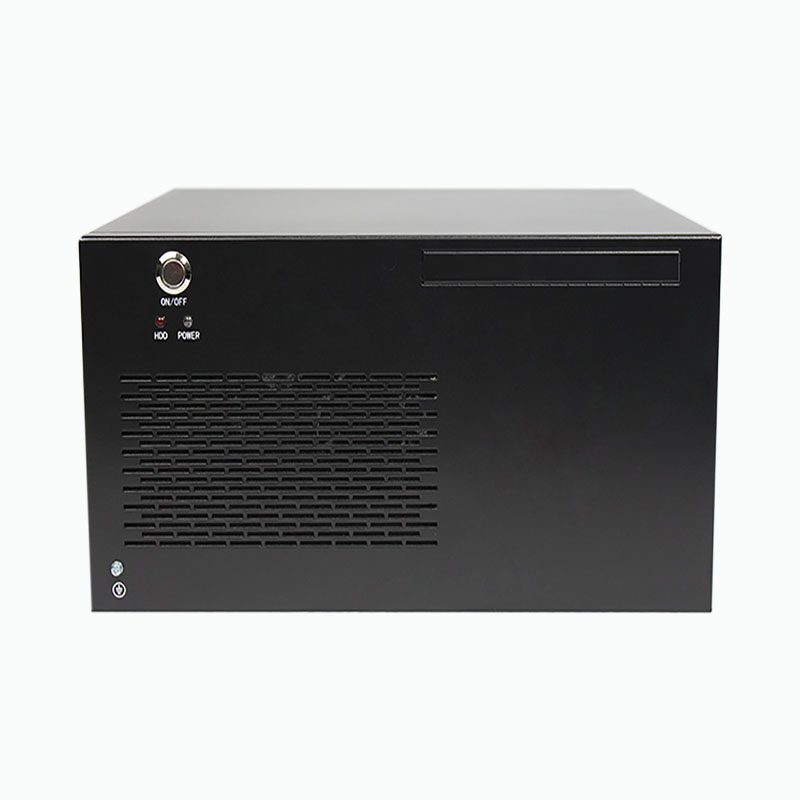

Panel Setting |
One Power switch with Indicator One HDD Indicator
|
|
Case Material |
SGCC |
|
Material Thickness |
1.2MM |
• Dimensions(mm)：320(W)*290(D)*163(H)mm
• Main Board：9.6"* 9.6"(245*245MM)
• Hard Disk：One 3.5-inch Hard Disk or2*2.5 HDD
• CD-ROM： One notebook drive
• Power： 1U flex PSU
• Fan： Two 6025 Fans
• Expansion Slot：Four Full High and Straight Slots 6*com connector ,6*USB 2.0 connector
• Panel Setting： One Power switch with Indicator One HDD Indicator
• Case Material： SGCC
• Material Thickness：1.2MM
• Packaging size：46.5*44*29CM(0.059CBM)
• Gross weight：6.975KG
• N.W：4.592KG
• Container loading quantity：20＂:474 40＂:983 40HQ＂：1152
