Module |

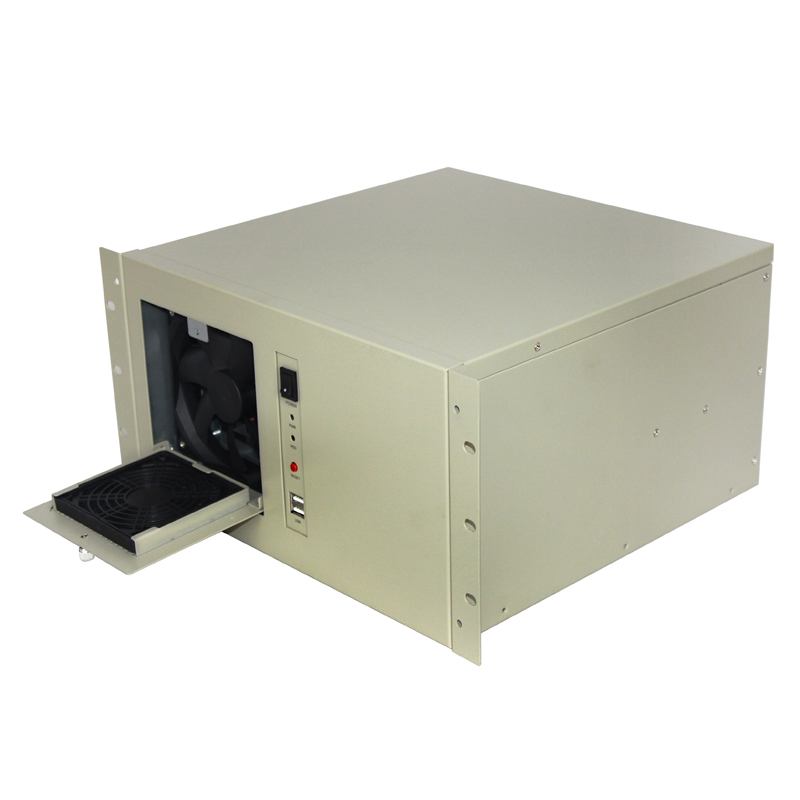

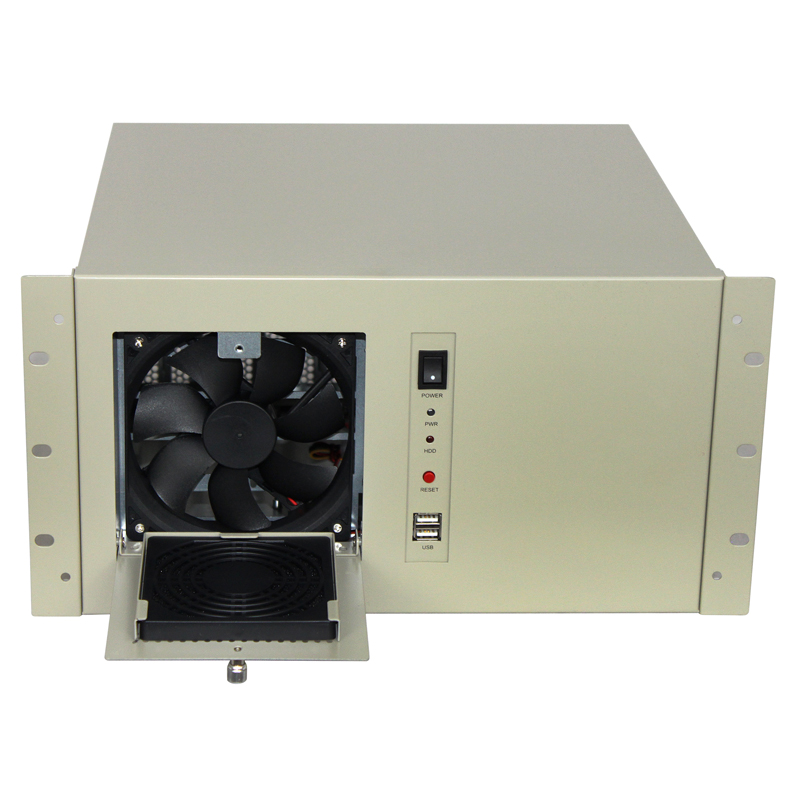

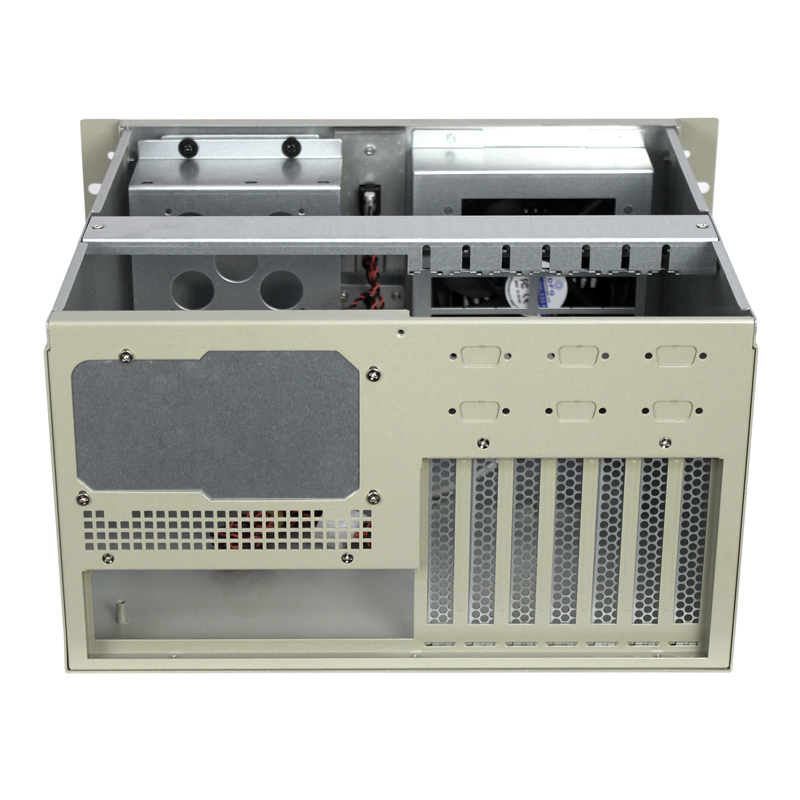

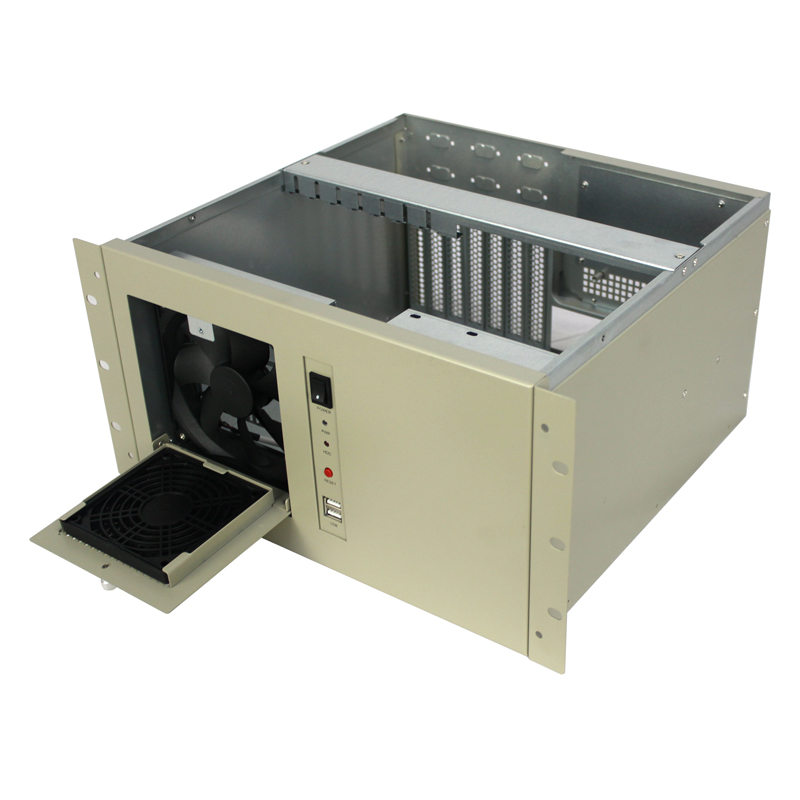

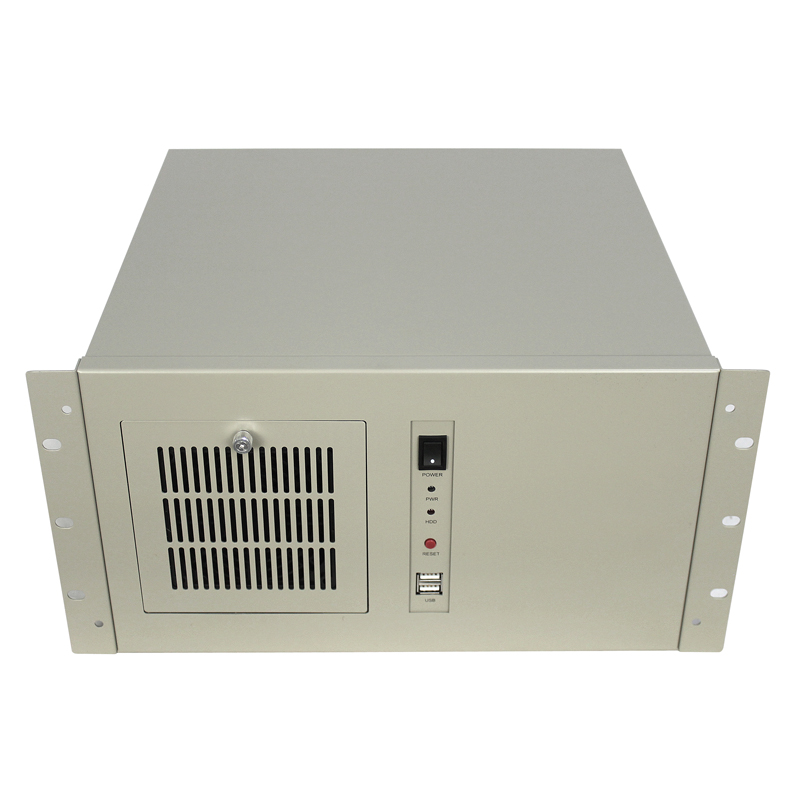

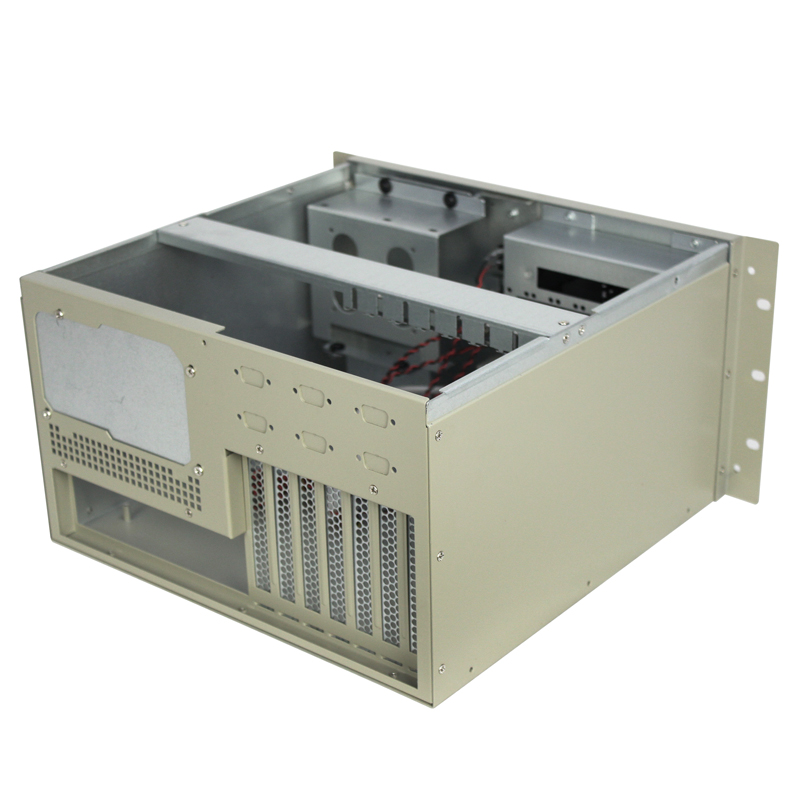

S39 Industrial Case |
|
Dimensions |
383(W)*330(D)*190mm(H) |
|
Main Board |
12"*9.6"(305 *245MM) |
|
Hard Disk |
One 3.5-inch Hard Disk |
|
CD-ROM |
No |
|
Power Supply |
ATX PSU |
|
Fan |
One 12025 Fan |
|
Expansion Slot |
One I/O Expansion Slot,Seven Full High and Straight PCI Slots |
|
Panel Setting |
Two USB2.0; One Power Switch;One Restart Switch;One Power Indicator;One HD Indicator;One PS/2. |
|
Case Material |
Ma Steel flowers-free zinc plating |
|
Material Thickness |
1.2MM |
|
Delivery time |
1 Week for sample ,2 Weeks for mass goods |
|
Payment Terms |
30%TT Prepay 70%TT before shipment |
• Dimensions(mm)：383(W)*330(D)*190mm(H)
• Main Board：12"*9.6"(305 *245MM)
• Hard Disk：One 3.5-inch Hard Disk
• CD-ROM：No
• Power：ATX PSU
• Fan：One 12025 Fan
• Expansion Slot：One I/O Expansion Slot,Seven Full High and Straight PCI Slots
• Panel Setting：Two USB2.0; One Power Switch;One Restart Switch;One Power Indicator;One HD Indicator;One PS/2.
• Case Material： Ma Steel flowers-free zinc plating
• Material Thickness：1.2MM
• Packaging size：45*44.5*29.5CM(0.059CBM)
• Gross weight：7.135KG
• N.W：5.711KG
• Container loading quantity：20＂:474 40＂:983 40HQ＂：1152
