Module |

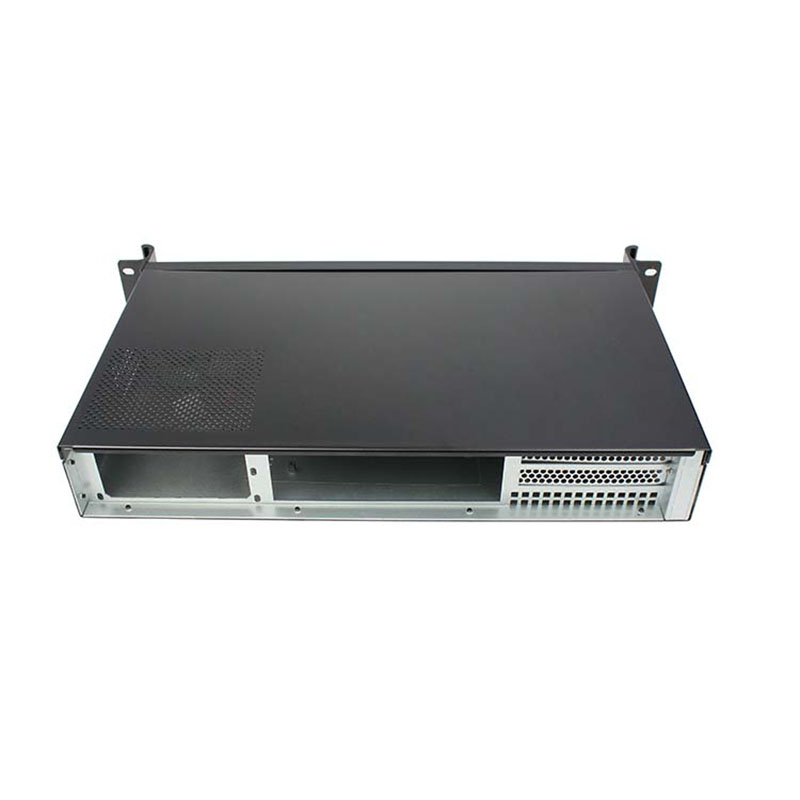

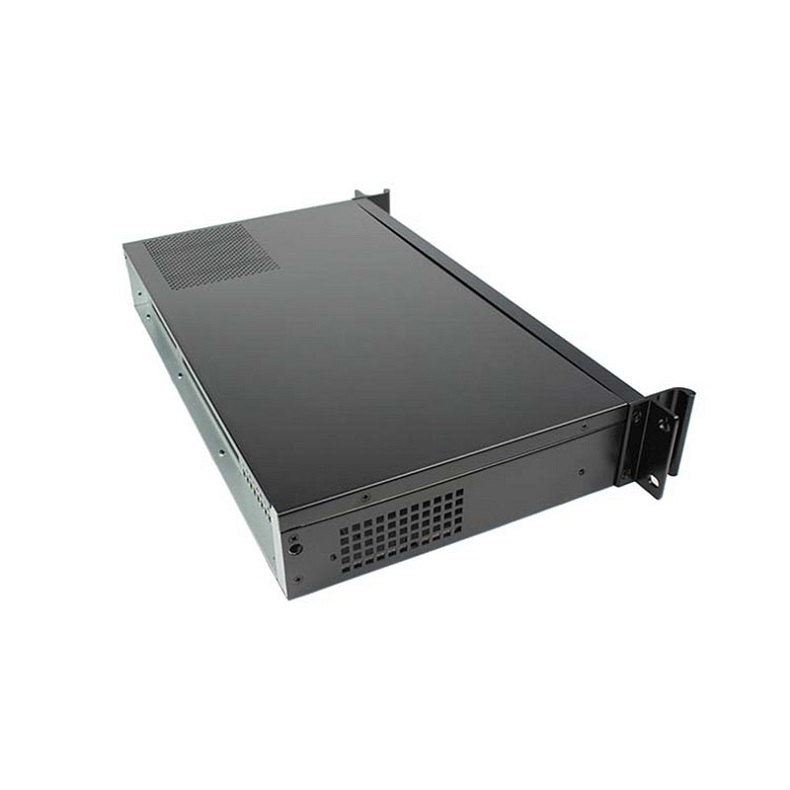

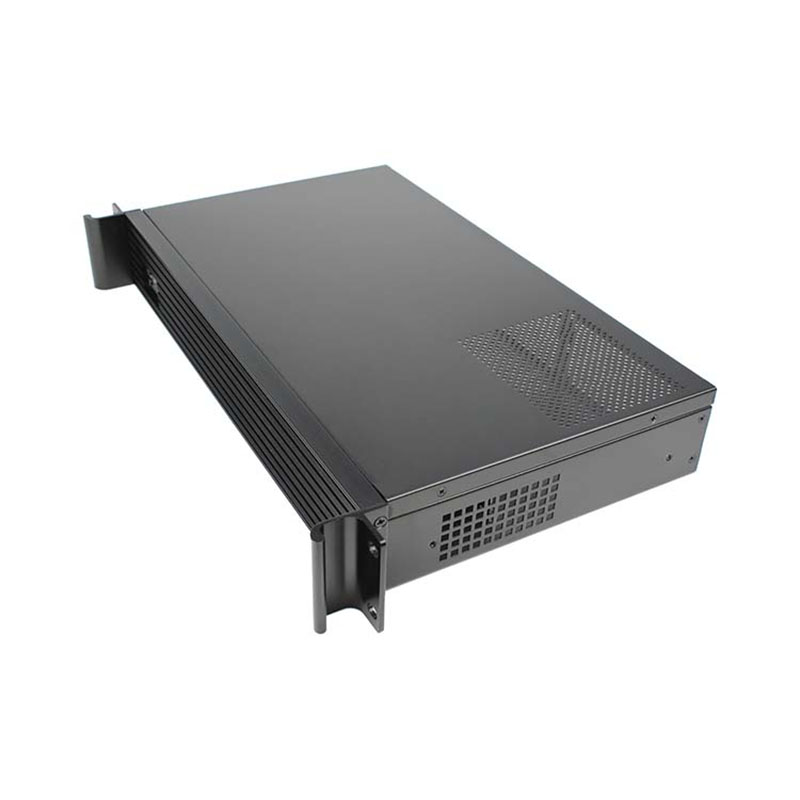

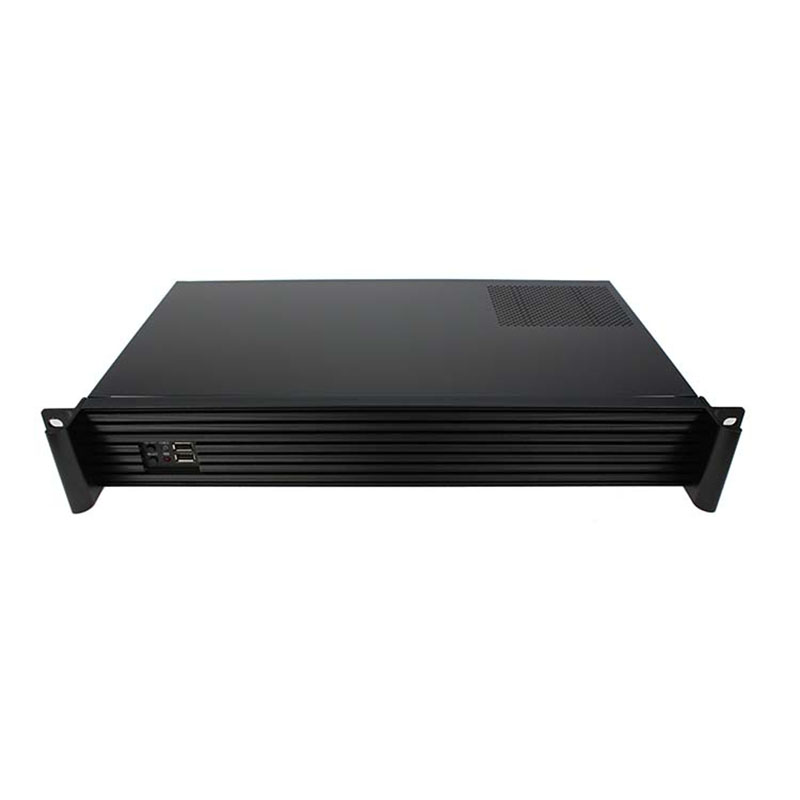

K1525L Industrial Case |
|
Product Feature: |
|
|
Standard 19-inch rack-mounted Design; 250mm Frame; Front-installed ON/OFF Switch; Restart Button; Power Indicator; HD Indicator and Two USB2.0 ports. |
|
|
Technical Parameters: |
|
|
Dimensions |
482(W)*250(D)*67.5 mm(H) |
|
Main Board |
7"*7"(170*170MM) |
|
Hard Disk |
Five2.5-inch Hard Disks or One 3.5-inch HD |
|
CD-ROM |
None |
|
Power Supply |
PC Micro -SFX PSU |
|
Fan |
Two 6025 Fans |
|
Expansion Slot |
Two Full High and Straight Slot (Riser Card is needed/Optional) |
|
Panel Setting |
Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
|
Case Material |
Ma Steel flowers-free zinc plating |
|
Material Thickness |
1.2MM |
|
Delivery time |
1 Week for sample ,2 Weeks for mass goods |
|
Payment Terms |
30%TT Prepay 70%TT before shipment |
• Dimensions(mm)：482(W）*250（D）*67.5 mm（H）
• Main Board：7"*7"(170*170MM)
• Hard Disk： Five2.5-inch Hard Disks or One 3.5-inch HD
• CD-ROM：No
• Power：PC Micro ATX power ,SFX PSU support
• Fan：2*6025 cooling fan
• Expansion Slot： Two Full High and Straight Slot (Riser Card is needed/Optional)
• Panel Setting：Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator(Red);Two Network Indicators(Yellow)
• Case Material：SGCC
• Material Thickness：1.2MM
• Packaging size：54*39.5*18CM(0.038CBM)
• Gross weight：4.11KG
• N.W：3KG
• Container loading quantity：20＂:736 40＂: 1526 40HQ＂：1789
