19 inch Industrial 2U Database Server and SMB Internet Server Construction

Module

K248L Industrial Case

Product Feature:

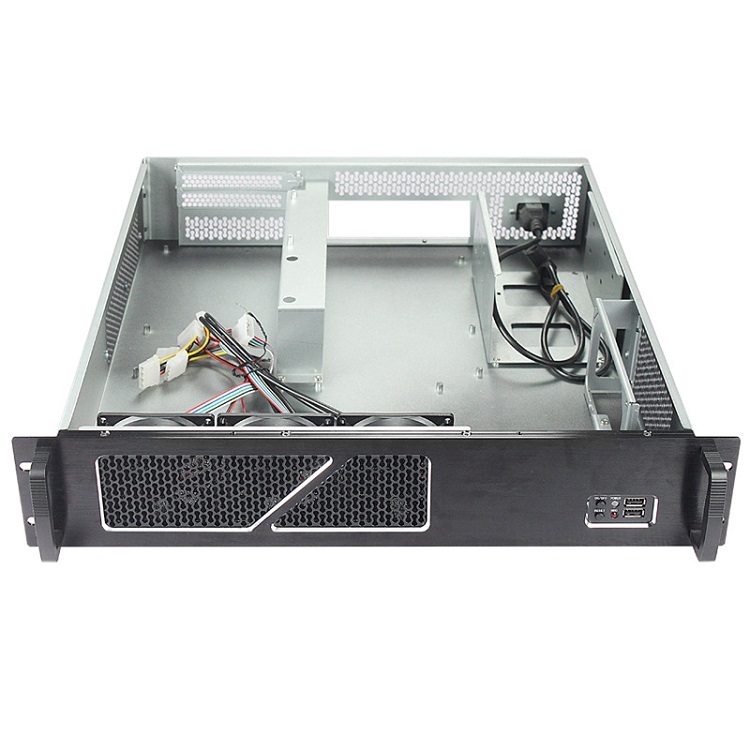

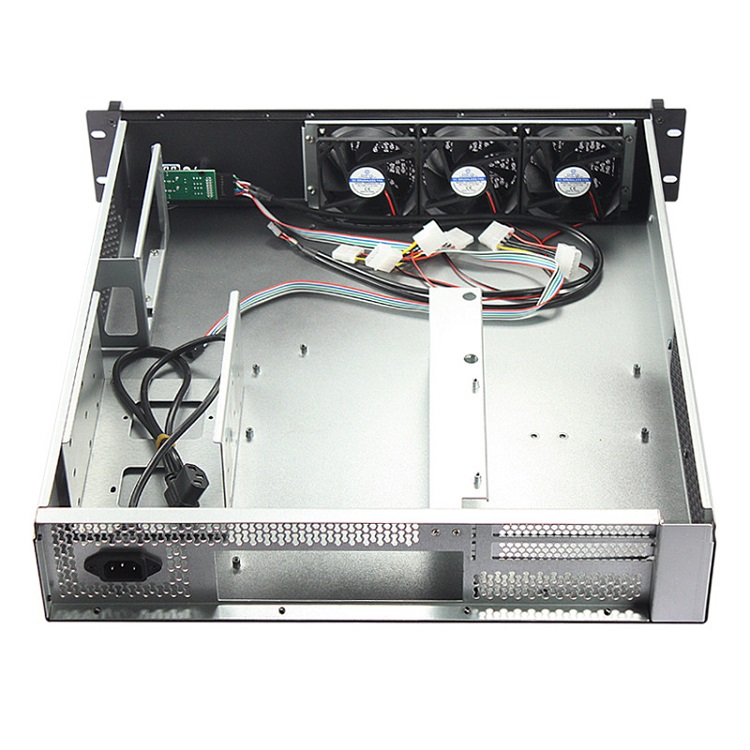

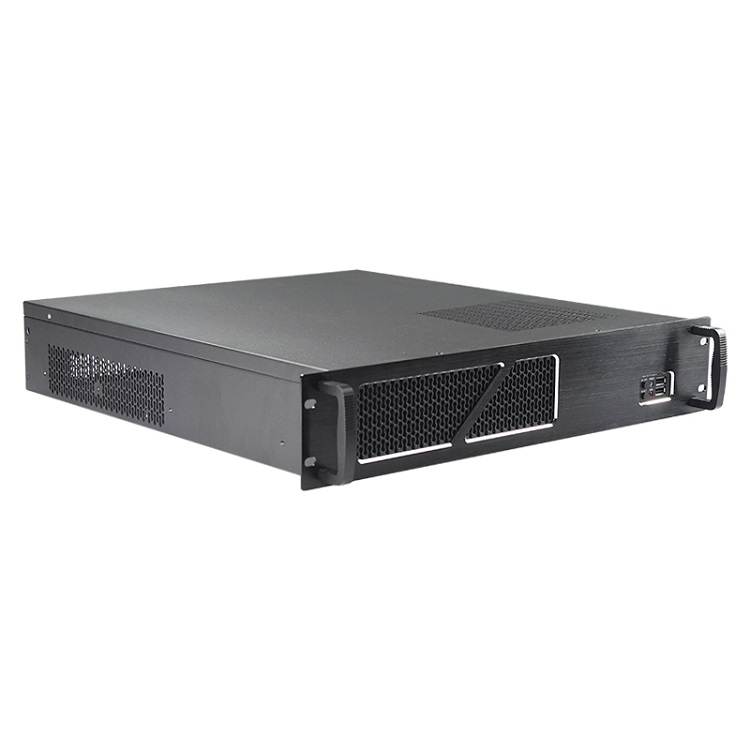

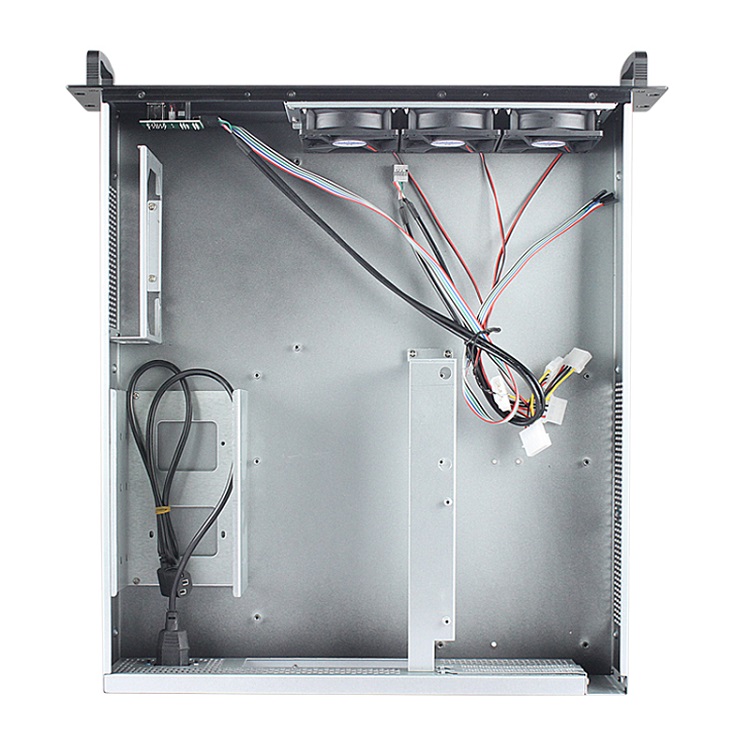

K248L is a kind of standard 19" processing industry Case with the height of 2U by applying high-quality Aluminum panel and unique cooling holes. Featuring novel structural design, it is solid, compact and reasonable in design and easy for installation and operation. Meanwhile, it can support 3* 3.5-inch hard disk Meanwhile, our products are widely applied in different sectors including industrial automation, communication, electricity, network safety, intelligent transportation, video surveillance, medical care, military industry/aerospace industry, self-service terminal, date storage, digital signage, car-mounted computer and 3C application etc.

Technical Parameters:

Dimensions

482(W)*480(D)*89 mm(H)

Main Board

12"* 9.6"(305* 245MM)

Hard Disk

Three 3.5-inch Hard Disks or 2* 3.5-inch & 1*2.5-inch Hard Disk

CPU height

75mm

Power

ATX PSU

Fan

3* 8025 Fans

Expansion Slot

2*PCI-E slot Horyzontal

Panel Setting

Two USB2.0; One Power switch with Indicator; One Reset switch; One Hard disk indicator light

Case Material

Aluminum and SGCC

Weight

N.W:6  G.W: 7.5 KGS

Material Thickness

1.2MM

Delivery time

Shipping in two days when we get the order confirmation,two weeks for mess order when goods empty stock

Payment Terms

30%TT Prepay 70%TT before shipment
