Module |
R155-4 IPC Case |
Dimensions |
482(W)*550(D)*44.5 mm(H) |
Main Board |
12"*9.6"(305*240MM) |
Hard Disk |
Four 3.5-inch Hard Disks |
CD-ROM |
None |
Power Supply |
1U Standard Power Supply |
Fan |
Four 4028 Fans |
Expansion Slot |
One Full High and Straight Slot (Riser Card is needed/Optional) |
Panel Setting |
Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator(Red);Two Network Indicators(Yellow) |
Case Material |
Ma Steel flowers-free zinc plating |
Material Thickness |
1.2MM |
Delivery time |
1 Week for sample ,2 Weeks for mass goods |
Payment Terms |
30%TT Prepay 70%TT before shipment |

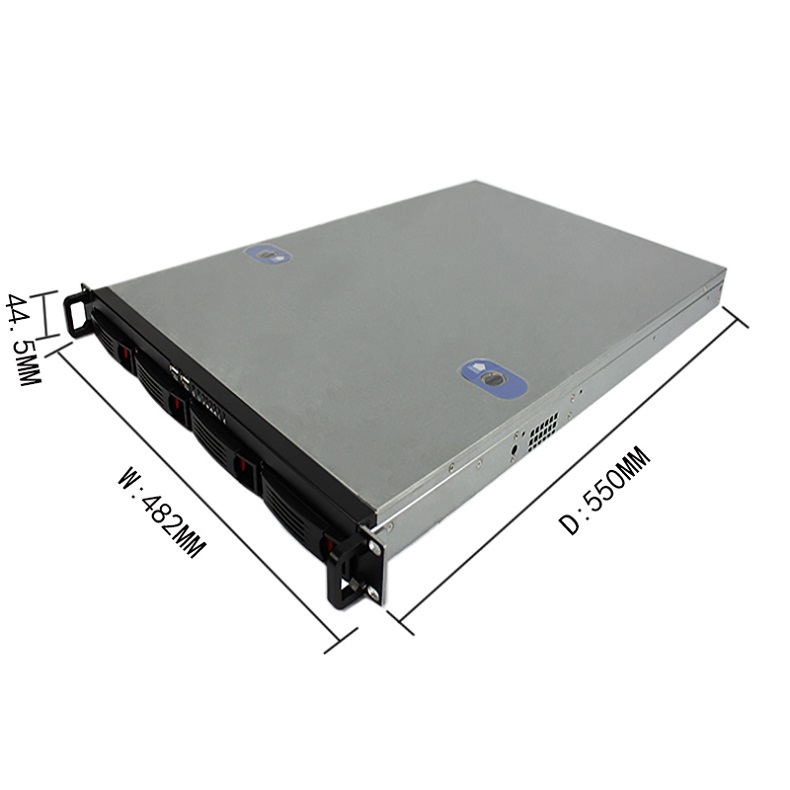

• Dimensions(mm)：482(W）*550（D）*44.5（H）
• Main Board：12"*9.6"(305* 240MM)
• Hard Disk：4*3.5" HDD tray and 2*2.5" HDD bracket
• CD-ROM：No

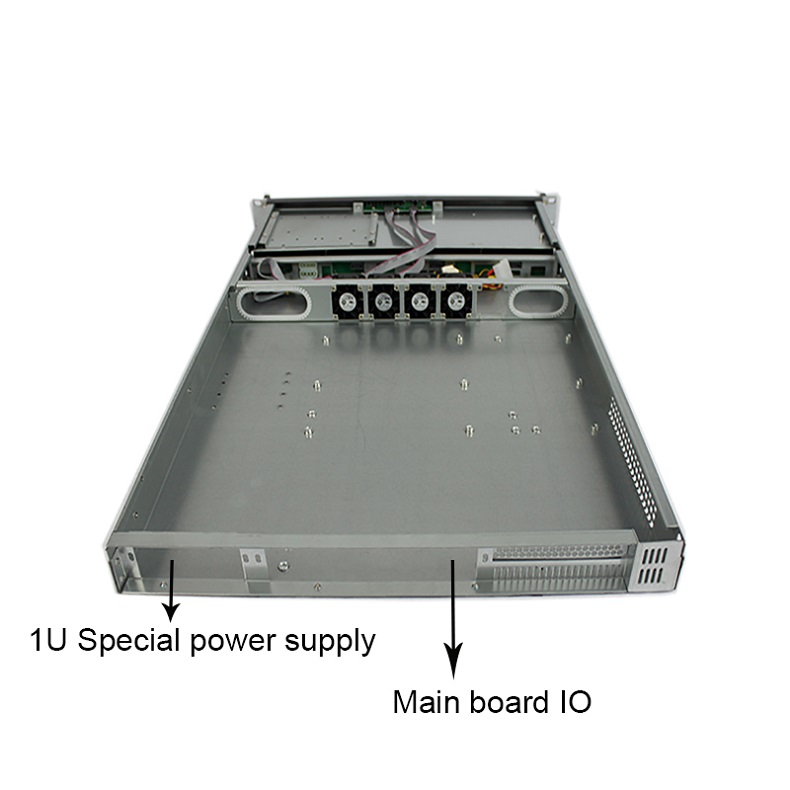

• Power：1U Special Power Supply
• Fan：4*4028 cooling fan
• Expansion Slot：1*PCI-E slot（Option of riser card）
• Panel Setting：Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator(Red);Two Network Indicators(Yellow)
• Case Material：SGCC
• Material Thickness：1.2MM
• Packaging size：72*59*14CM(0.059CBM)
• Gross weight：10.4KG
• N.W：7.309KG
• Container loading quantity：20＂:474 40＂: 983 40HQ＂：1152
