2U Standard Chassis 6 x 3.5" HDD + 7*PCIE for ATX Board

Module

K246F Industrial Case

Product Feature:

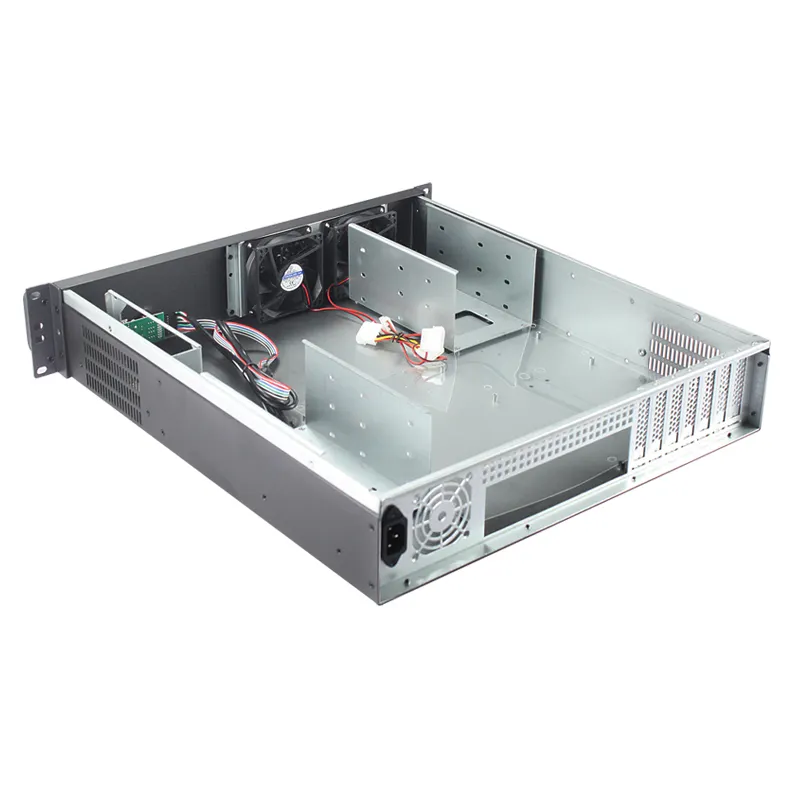

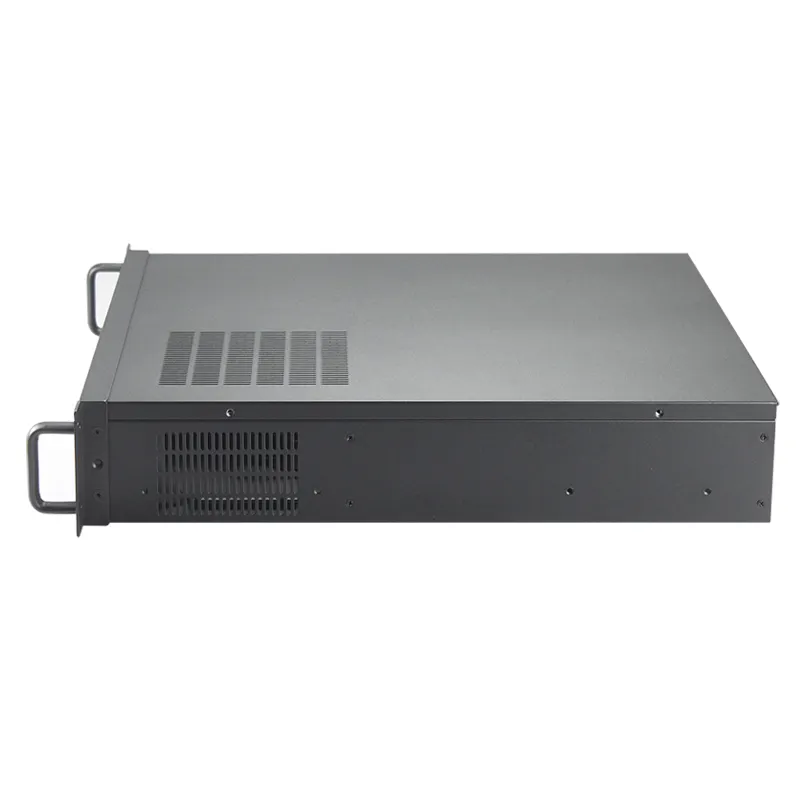

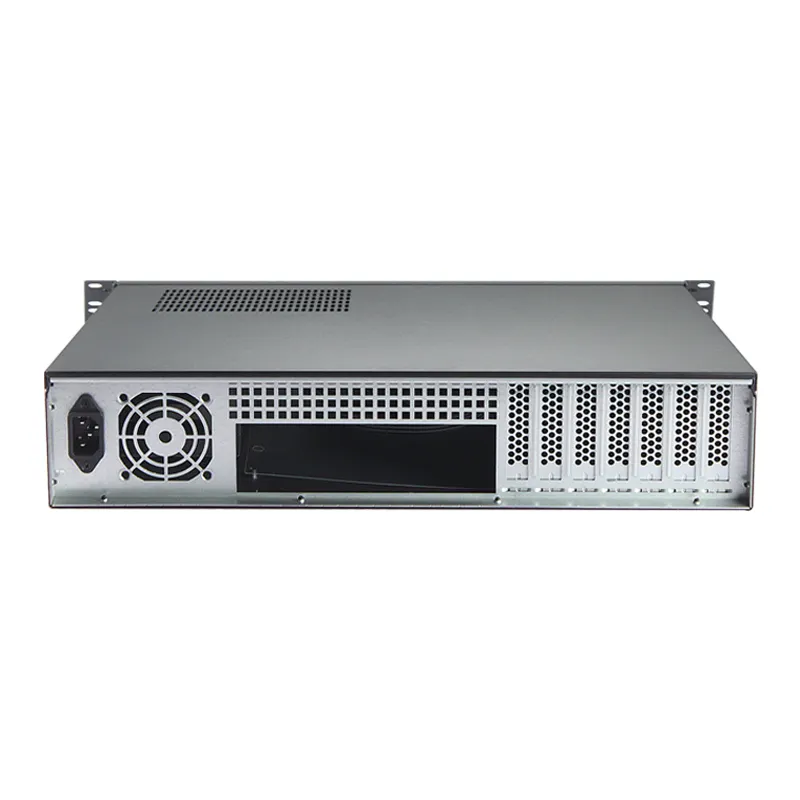

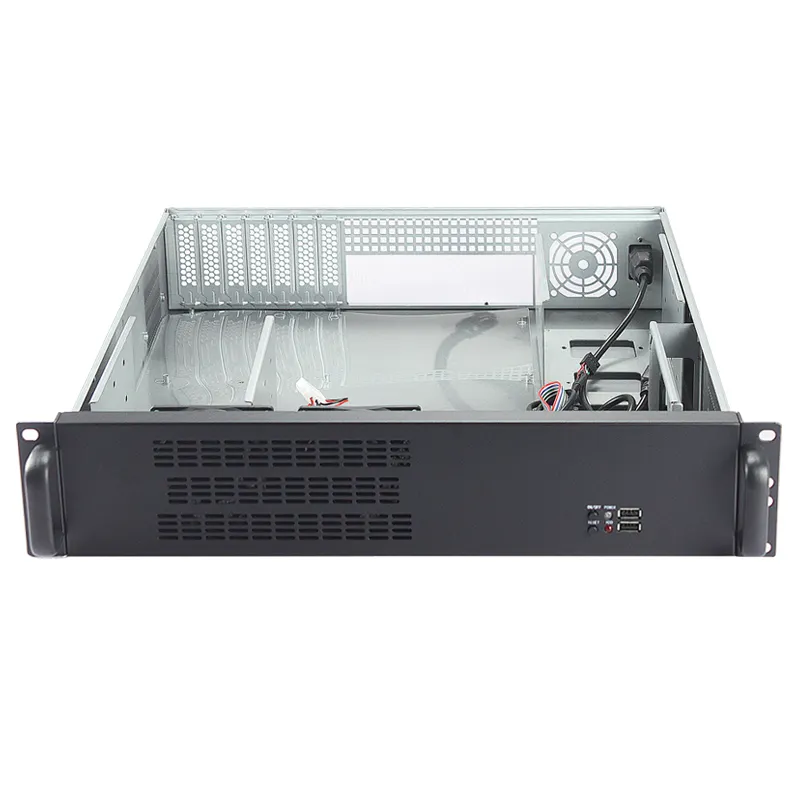

K246F  is a kind of standard 19" processing industry Case with the height of 2U by applying high-quality Ma Steel flowers-free zinc plating. Featuring novel structural design, it is solid, compact and reasonable in design and easy for installation and operation. Meanwhile, it can support  6* 3.5-inch hard disks,Meanwhile, the company’s products are widely applied in different sectors including industrial automation, communication, electricity, network safety, intelligent transportation, video surveillance, medical care, military industry/aerospace industry, self-service terminal, date storage, digital signage, car-mounted computer and 3C application etc.

Technical Parameters:

Dimensions

482(W)*480(D)* 89 mm(H)

Main Board

 12"* 9.6"(305*245MM)

Hard Disk

6*3.5-inch Hard Disks

CD-ROM

No

Power

ATX PSU

Fan

 Two 8025 Fans

Expansion Slot

7*Half Height PCI-E Slots

Panel Setting

Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator

Case Material

SGCC

Material Thickness

1.0MM

Weight

G.W :7.3KGS  /N.W :5.89KGS

Delivery time

1 Week for sample ,2 Weeks for mass goods

Payment Terms

30%TT Prepay 70%TT before shipment
