3U 400mm deepth rack chassis with LCD display manufacture

Module

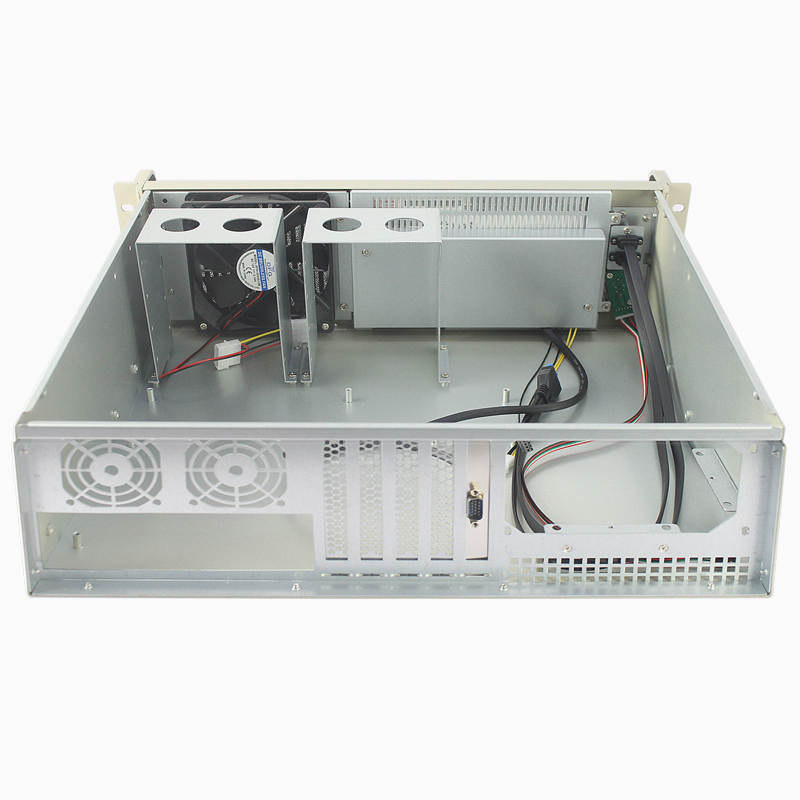

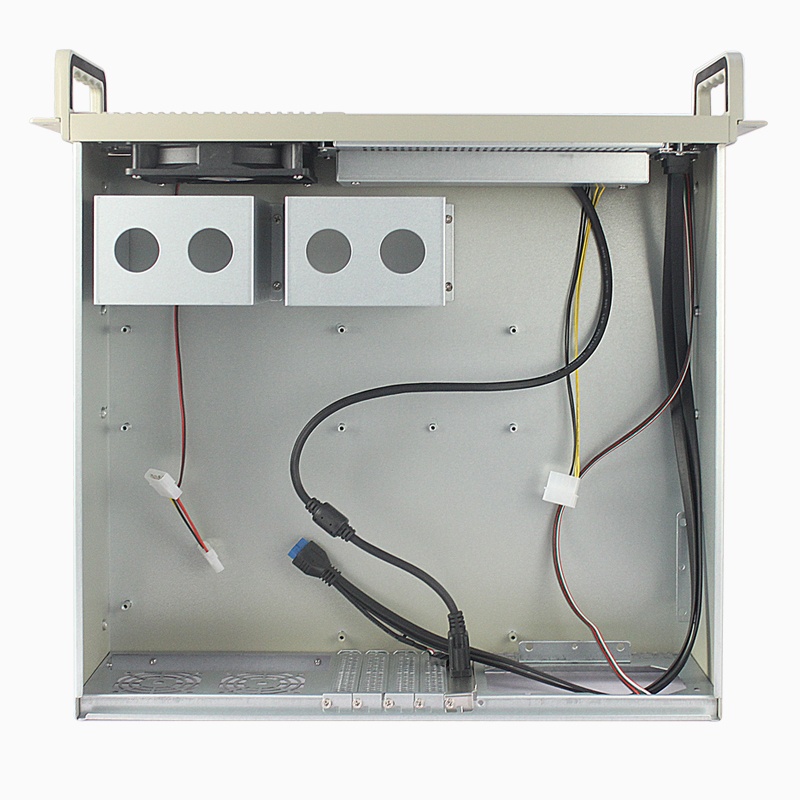

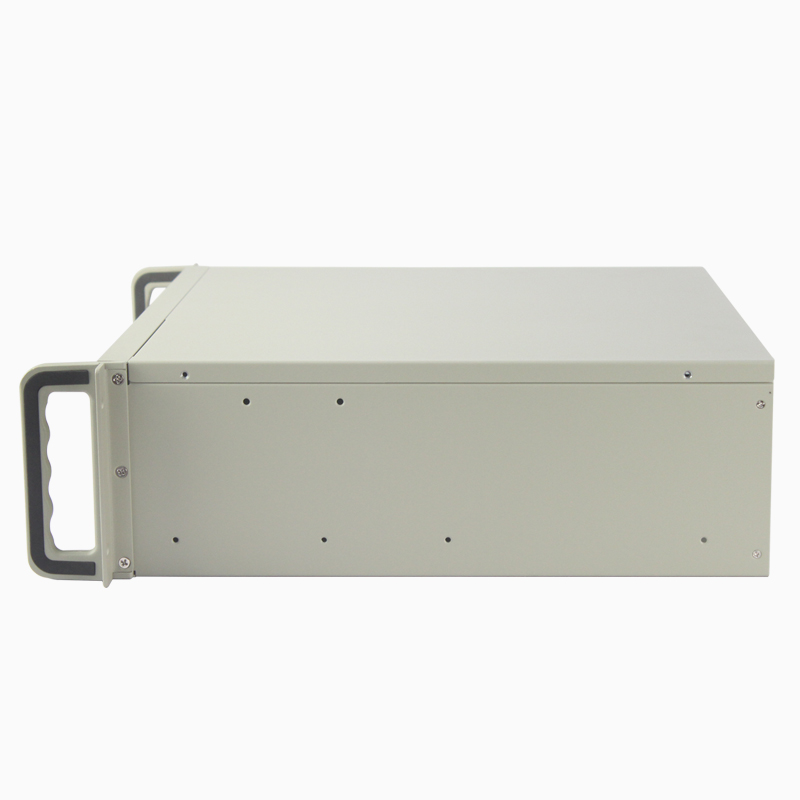

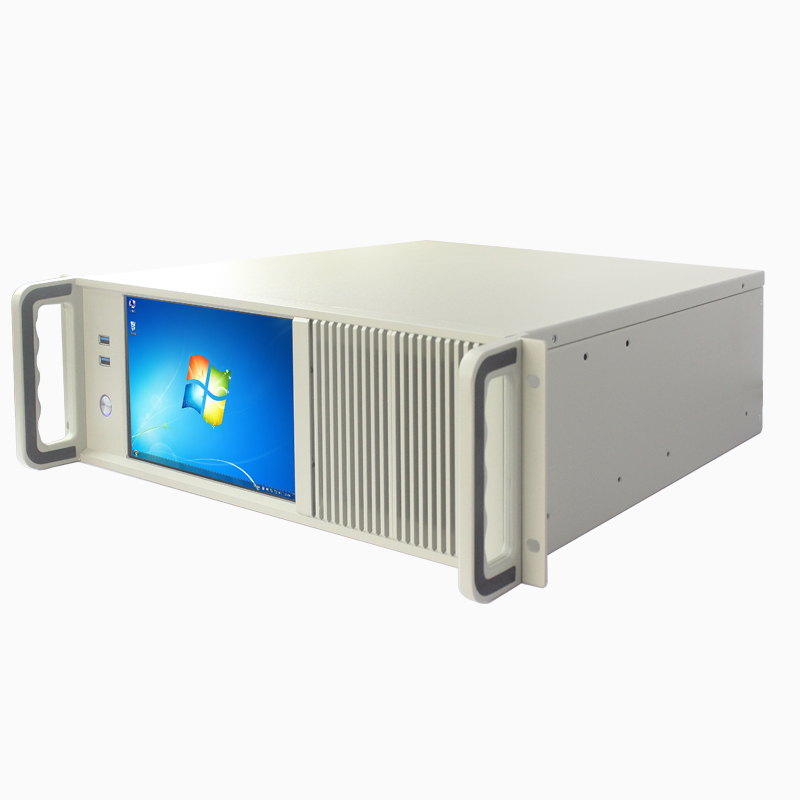

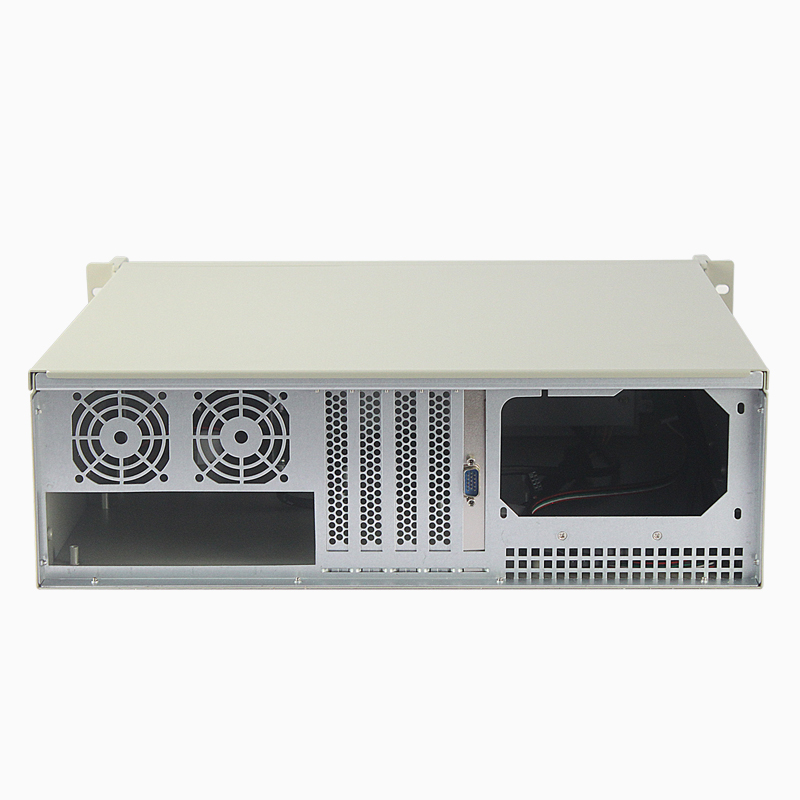

K340LC Industrial Case

Product Feature:

K340LC  was one kind of standard 19" processing industry Case with the height of 3U by applying high-quality Ma Steel flowers-free zinc plating. Featuring novel structural design, it is solid, compact and reasonable in design and easy for installation and operation. Meanwhile, it contains the 8.9 inch touch screen  with 1024*600 resolution .It can support  8*3.5 HDD ,Meanwhile, the company’s products are widely applied in different sectors including industrial automation, communication, electricity, network safety, intelligent transportation, video surveillance, medical care, military industry/aerospace industry, self-service terminal, date storage, digital signage, car-mounted computer and 3C application AI etc.

Technical Parameters:

Dimensions

482(W)*400(D)*133 mm(H)

Main Board

ATX 12*9.6" (305*245mm) M-ATX:9.6*9.6"(245*245mm)  ITX :7*7"(170*170mm)

Hard Disk

8*3.5" HDD

CD-ROM

None

Power

 ATX Power Supply

Fan

1*12025 fan (4PIN interface)

Expansion Slot

4*PCI-E slot

Panel Setting

2*USB3.0; One Power Switch with indicator; 8.9" touch screen 1024*600 resolution

Case Material

SGCC and Aluminum panel

Material Thickness

1.2MM

G.W/N.W

7.6KGS/6.5KGS

Carton Size

Container quantity

Delivery time

shipping in two days when  the payment received
