Module |

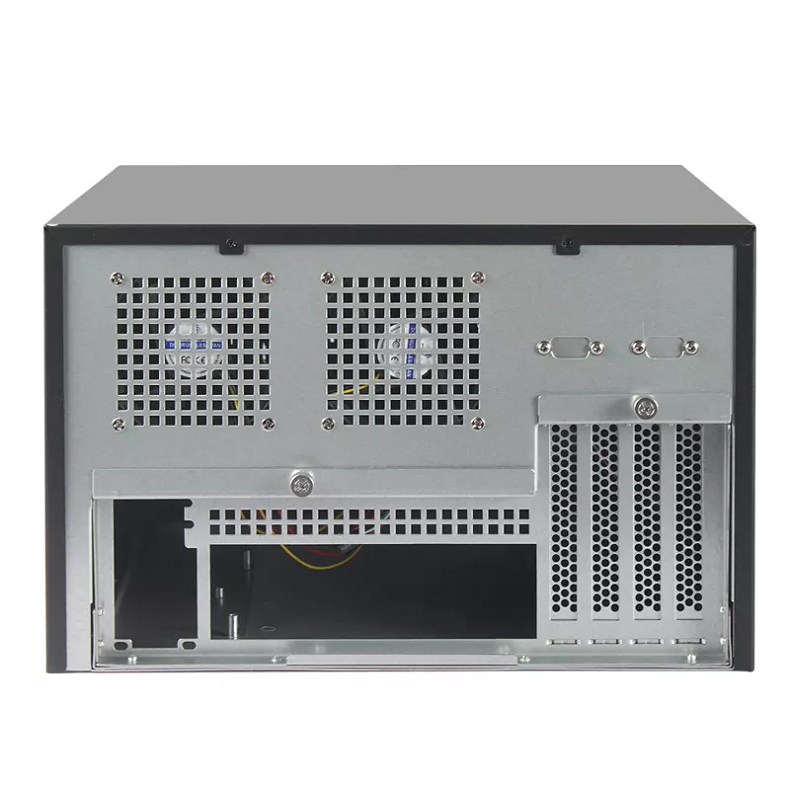

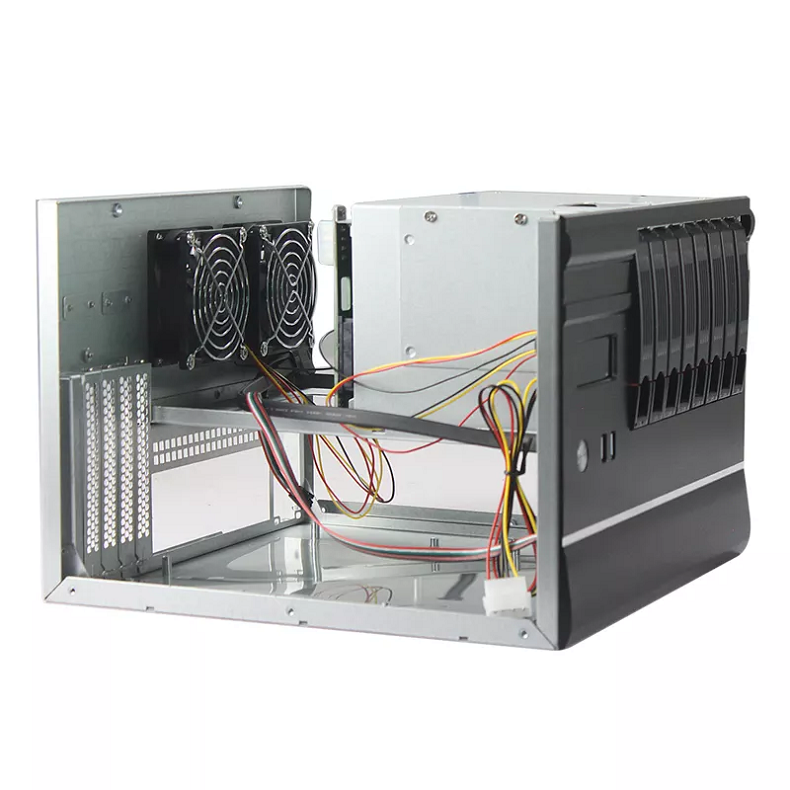

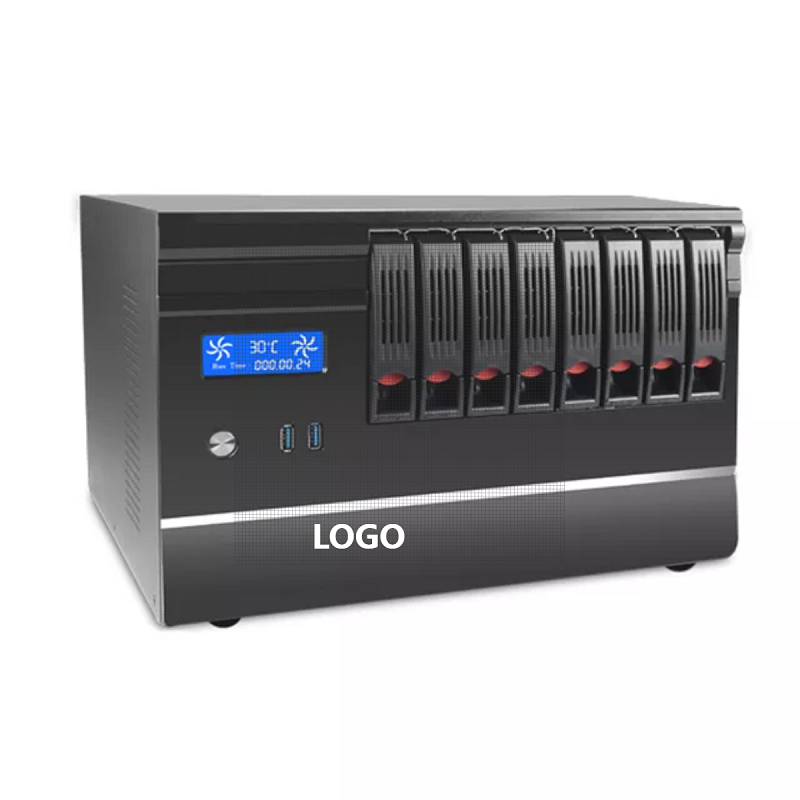

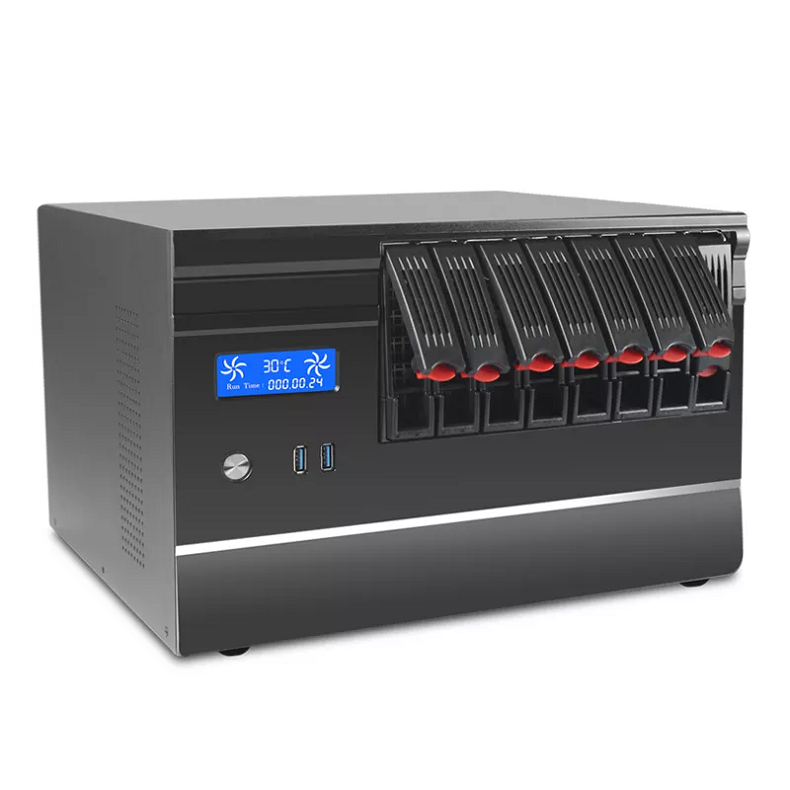

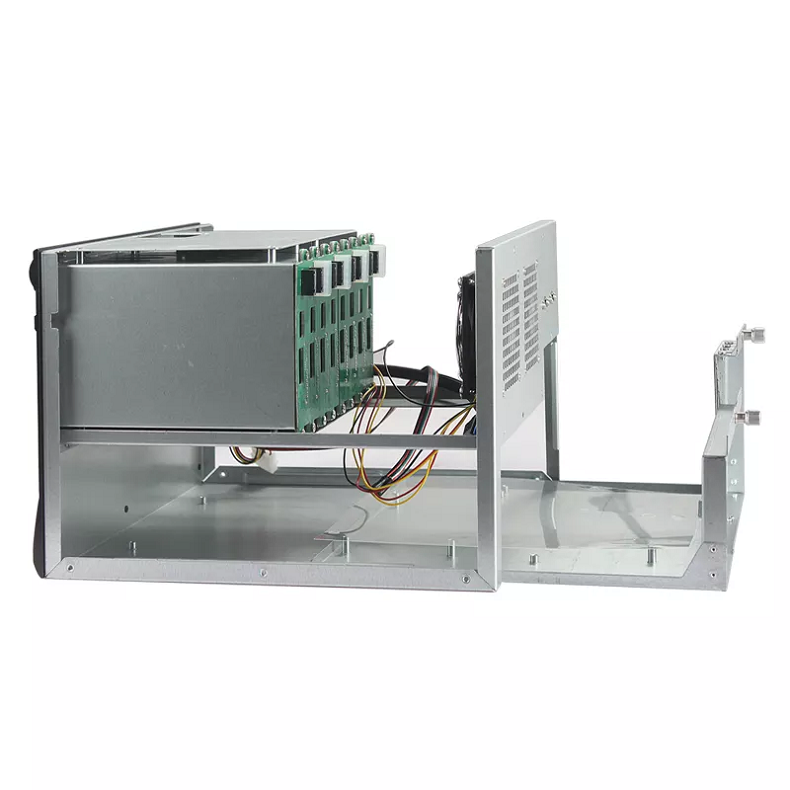

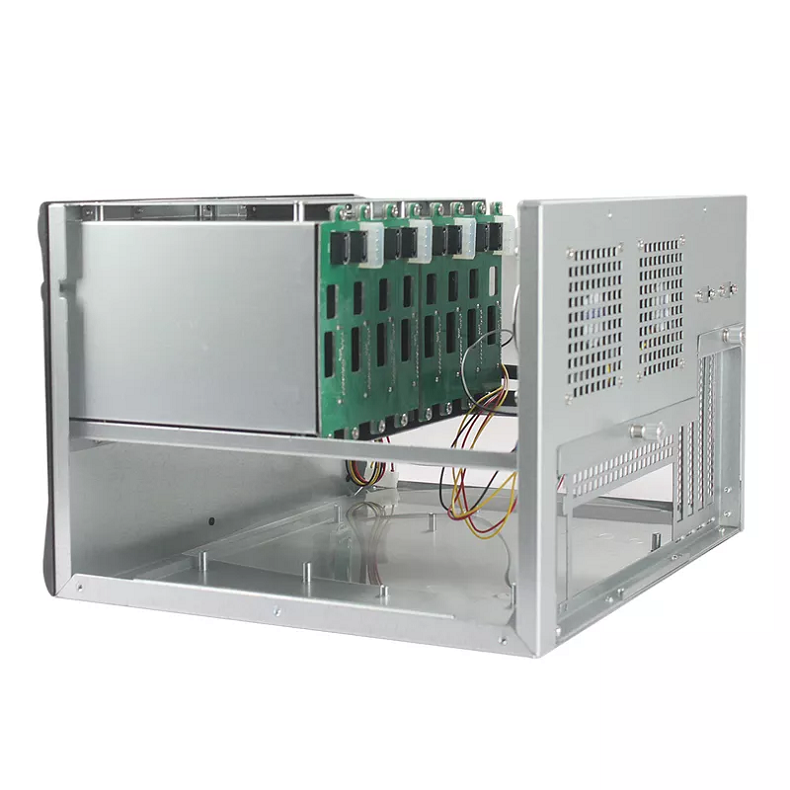

NAS 8Bay Industrial Case with LCD |
|
Product Feature: |
|
|
Application: 1. Internet Server(Web/Mail) 2. Firewall/VPN,Enterprise Internet applications, backup; Personal storage; 3. HTPC,File Server Features: 1. USB3.0 include 2.support sata backplane 3.sata / sas HDD support 4.OEM/ODM are welcome |
|
|
Technical Parameters: |
|
|
Dimensions |
340(W)*305(D)*220(H)mm |
|
Main Board |
9.6*9.6“ (245*245mm) |
|
Hard Disk |
8 Bays 8*3.5" HDD support |
|
TEMP screen |
show the working time and control the speed |
|
Power |
Flex power |
|
CPU and GPU size |
65mm /260mm length |
|
Fan |
2*8025 |
| Expansion slot | 4*PCI-E slot |
|
Panel Setting |
2*USB3.0 One Power Switch with Indicator |
|
Case Material |
SGCC and aluminum panel |
|
Weight |
G.W:9.7KGS /N.W :8.1 KGS |
| Carton size | 46*47*36 |
• Dimensions(mm)：340(W)*305(D)*220(H)mm
• Main Board：9.6*9.6“ (245*245mm)
• Hard Disk：8 Bays 8*3.5" HDD support
• CD-ROM：No
• Power：FLEX PSU support
• Fan：2*8025 Fans Include
• Expansion Slot：4*PCI-E slot
• Panel Setting：1*TEMP LCD include,2*USB 3.0 include, Power on/off
• Case Material：Aluminum panel + SGCC body part
• Material Thickness：1.2mm body 4mm aluminum panel
• Packaging size：46*47*36 CM
• Gross weight：9.7 KGS
• N.W：8.1 KGS
• Container loading quantity：20FT ：380 pcs 40HQ： 850 PCS
