Module |
K1530L Industrial Case |
Product Feature: |
|
Standard 19-inch rack-mounted Design; 3000mm Frame; Front-installed ON/OFF Switch; Restart Button; Power Indicator; HD Indicator and Two USB2.0 ports. |
|
Technical Parameters: |
|
Dimensions |
482(W)*300(D)*67 mm(H) |
Main Board |

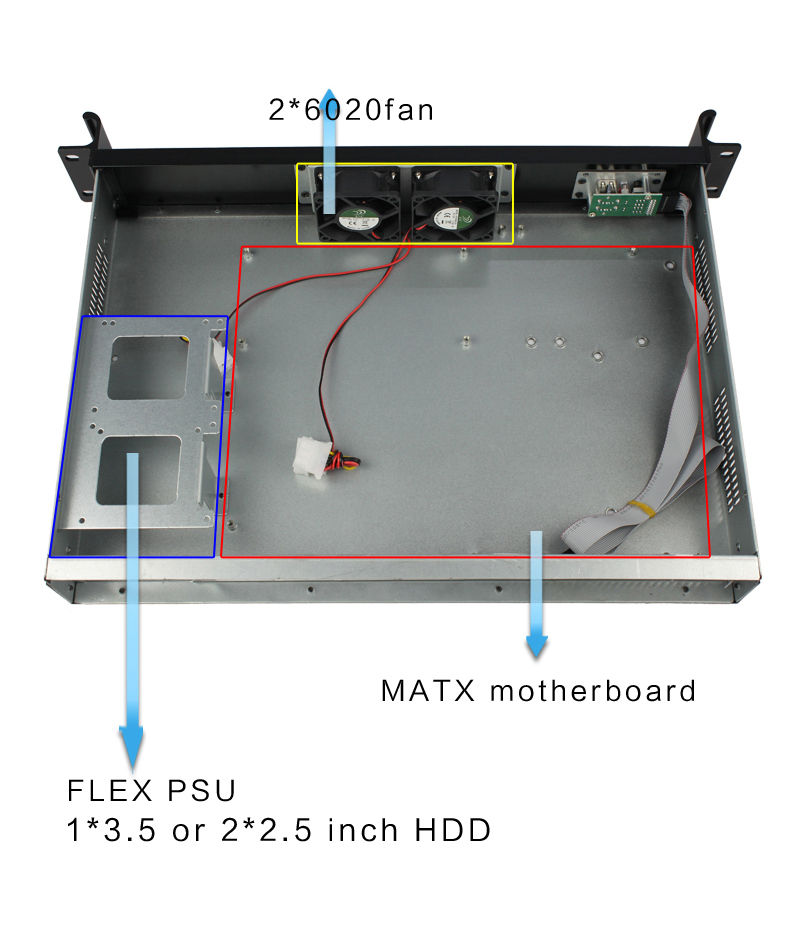

9.6"*9.6"(245*245MM) |
Hard Disk |
One 3.5-inch HD or Two 2.5-inch Hard Disks |
CD-ROM |
None |
Power Supply |
FLEX PSU |
Fan |
Two 6025 Fans |
Expansion Slot |

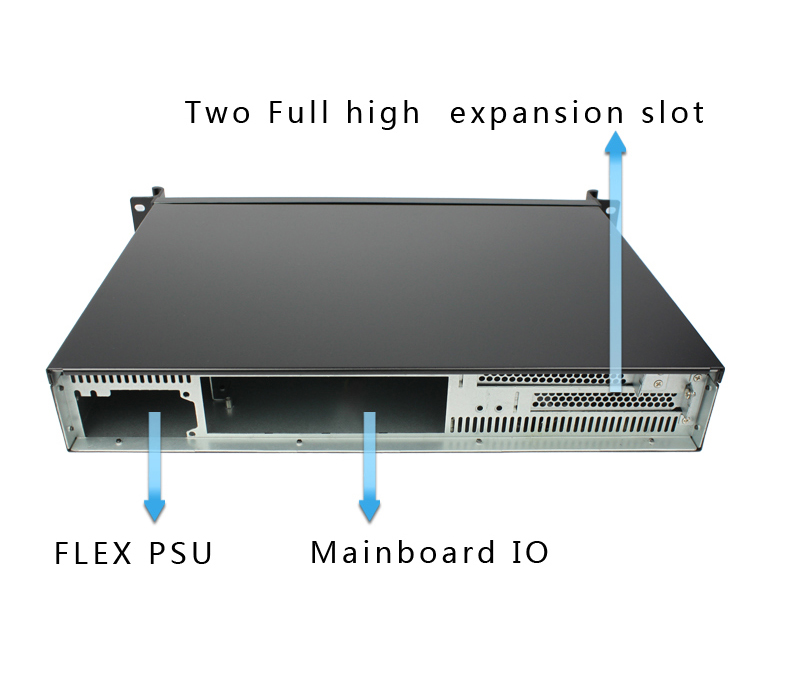

Two Full High and Straight Slot (Riser Card is needed/Optional) |
Panel Setting |
Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
Case Material |
Ma Steel flowers-free zinc plating |
Material Thickness |
1.2MM |
Delivery time |
1 Week for sample ,2 Weeks for mass goods |
Payment Terms |
30%TT Prepay 70%TT before shipment |
• Dimensions(mm)：482(W）*300（D）*67 mm（H）
• Main Board：9.6"*9.6"(245*245MM)
• Hard Disk：1*3.5" HDD or 2*2.5" HDD
• CD-ROM：No
• Power：FLEX PSU
• Fan：2*6025 cooling fan
• Expansion Slot： Two Full High and Straight Slot (Riser Card is needed/Optional)
• Panel Setting： Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator
• Case Material：SGCC
• Material Thickness：1.2MM
• Packaging size：54.5* 44*17.5CM(0.042CBM)
• Gross weight：4.38KG
• N.W：3.3KG
• Container loading quantity：20＂:666 40＂: 1380 40HQ＂：1619
